Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-INJ401-30
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: PoE Injector Adapter standard export package
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Maximum Distance: |
Cat6A UTP Up To 100m |
Input Power: |
12~48VDC (Terminal Block) |
Data Rate: |
10/100/1000Mbps |
Input Voltage: |
12~48VDC (Terminal Block) |
Output Power: |
30W |
Storage Temperature: |
-40°C To 85°C (-40°F To 185°F) |
Maximum Distance: |
Cat6A UTP Up To 100m |
Input Power: |
12~48VDC (Terminal Block) |
Data Rate: |
10/100/1000Mbps |
Input Voltage: |
12~48VDC (Terminal Block) |
Output Power: |
30W |
Storage Temperature: |
-40°C To 85°C (-40°F To 185°F) |

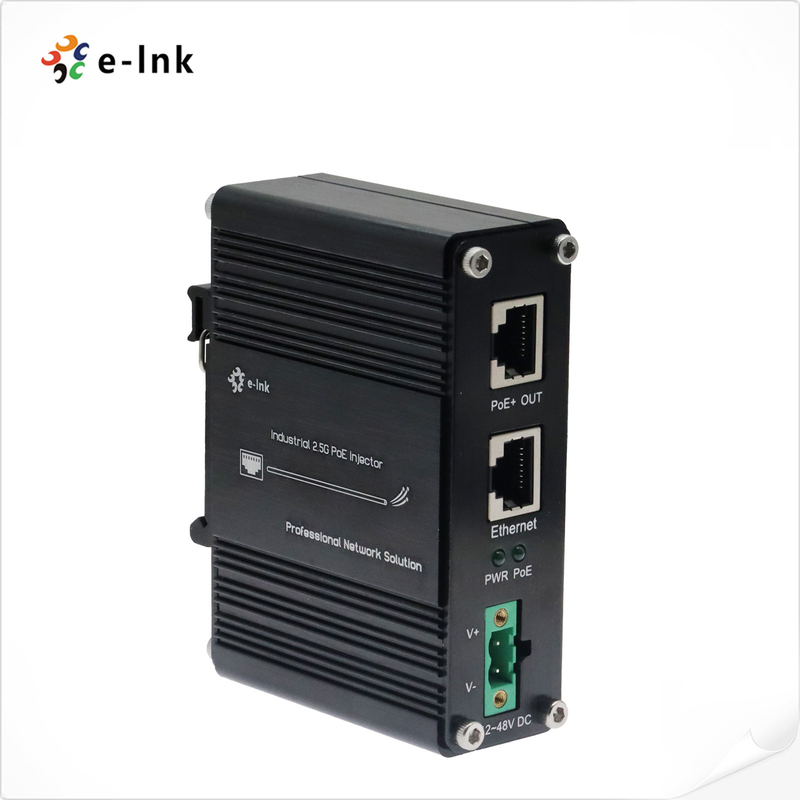

12~48V DC Power Input Industrial 2.5G PoE+ Injector
12~48VDC Power Input Industrial 2.5G PoE+ Injector Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000/2.5G Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 30 mm
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 3,720,000pps (2.5Gbps) |
| Cabling: | 10/100/1000/2.5G Base-T: Cat6A or above |
| Maximum Distance: | Cat6A UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
Application
Ordering Information
| Model | Description |
| LNK-INJ401-30 | 12~48VDC Power Input Industrial 2.5G PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
