Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-108M
Payment & Shipping Terms
Minimum Order Quantity: 1pairs
Price: negotiate
Packaging Details: HDMI Fiber Extender standard export package
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pairs per month
Input Signals: |
HDMI |
Signal Support: |
HDMI 1.4 HDMI Format Standard |
Video Support: |
4K@30Hz/1080p/1080i/720p |
Dimension (WxDxH): |
2.24 X 0.6 X 0.55 In (57x16x14mm) |
Weight: |
0.1 Kg / 0.22 Lb |
Humidity: |
To 90% RH (non-condensing) |
Input Signals: |
HDMI |
Signal Support: |
HDMI 1.4 HDMI Format Standard |
Video Support: |
4K@30Hz/1080p/1080i/720p |
Dimension (WxDxH): |
2.24 X 0.6 X 0.55 In (57x16x14mm) |
Weight: |
0.1 Kg / 0.22 Lb |
Humidity: |
To 90% RH (non-condensing) |
Mini 4K HDMI Extender Advantages
► Supports HDMI Video up to 4K/30Hz
► No Settings or Adjustments Necessary
► Supports up to 300m distance with OM3, 400m with OM4, 500m with OM5 fiber
► Standard HDMI1.4 Connector
► Integrated USB Connector for Power
► Low power consumption, only the RX module (Display side) needs external power supply
► Hot-Pluggable
► The TMDS signal is transmitted through a multimode optical fiber
► Uses Small, Reliable LC Optical Connector
overview

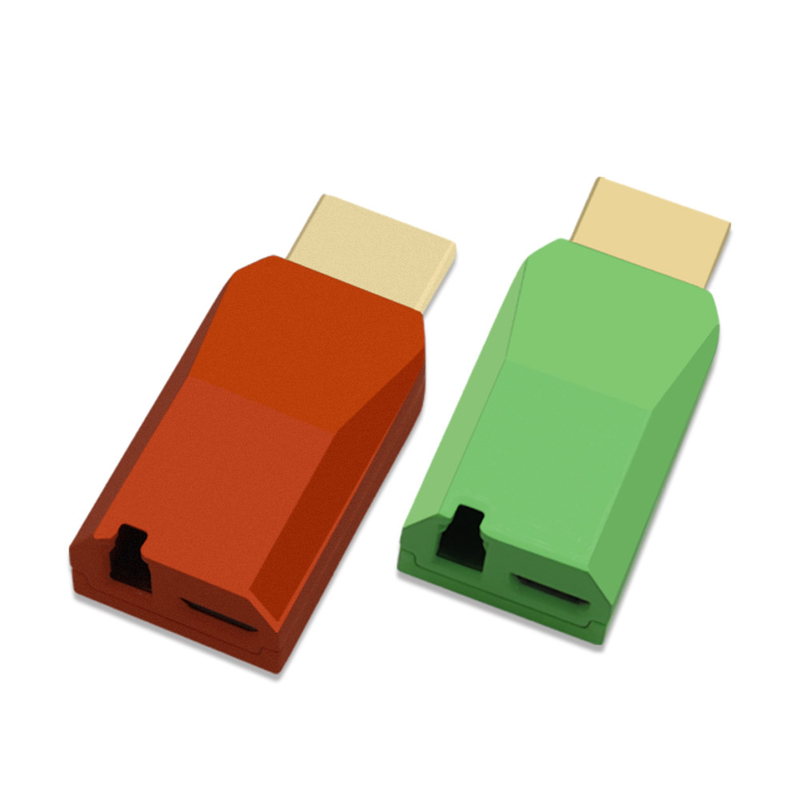

The LNK-108M is a mini 4K/30Hz HDMI over Single-Core MM fiber extender that is pluggable directly
into your device. Extend your 4K video source over fiber up to 500m (with OM5 fiber) to your desired
display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI
emissions or loss of video quality due to no copper conductor present.
The 4K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission
of an uncompressed lossless HDMI 1.4 signal over OM5 multimode optical fiber at 850nm, up to distances
of 500m, at a resolution of 4Kx2K. LNK-108M-T converts an HDMI signal to a single 10Gb/s serial data
stream for transmission over single optical fibers. LNK-108M-R converts the serial data back to an HDMI
signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This
product is ideal for large-screen display, conferencing systems and home entertainment and so on. The
device has the ability of anti-interference, to ensure the stability of the signal.
Technical Indexes
| Type of Extender | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4 HDMI format standard |
| Video Support | 4K@30Hz/1080p/1080i/720p |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 10.2Gbps(3.4Gbps/CH) |
| Transmission Distance | 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
| Operating Temperature | -20°C to + 70°C |
| Storage Temperature | -40°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Operation Current | TX+RX: 75mA |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
| Note | The module does not support HDCP and EDID transparent transmission |
Application
Ordering Information
| Model | Description |
| LNK-108M |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input Distance: 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
