Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-201M
Payment & Shipping Terms
Minimum Order Quantity: 1pairs
Price: negotiate
Packaging Details: HDMI Fiber Extender standard export package
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pairs per month
Input Signals: |
HDMI 2.1 |
Signal Support: |
HDMI 2.1 HDMI Format Standard |
Video Support: |
8K@60Hz/4K@120Hz/1080p/1080i/720p Up To 7680x4320@60Hz |
Dimension (WxDxH): |
2.24 X 0.6 X 0.55 In (57x16x14mm) |
Weight: |
0.1 Kg / 0.22 Lb |
Humidity: |
To 90% RH (non-condensing) |
Input Signals: |
HDMI 2.1 |
Signal Support: |
HDMI 2.1 HDMI Format Standard |
Video Support: |
8K@60Hz/4K@120Hz/1080p/1080i/720p Up To 7680x4320@60Hz |
Dimension (WxDxH): |
2.24 X 0.6 X 0.55 In (57x16x14mm) |
Weight: |
0.1 Kg / 0.22 Lb |
Humidity: |
To 90% RH (non-condensing) |
Mini 4K HDMI2.1 Extender Advantages
► Supports HDMI2.1 Video up to 8K/60Hz (Y:U:V 4:4:4)
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission
► Supports up to 100m Transmission Distance with OM5 multimode fiber
► Standard HDMI2.1 Connector
► Integrated USB Connector for Power
► Hot-Pluggable
► The TMDS signal is transmitted through a multimode optical fiber
► Uses Small, Reliable LC Optical Connector
► Support EDID, HDCP, CEC transparent transmission
Overview

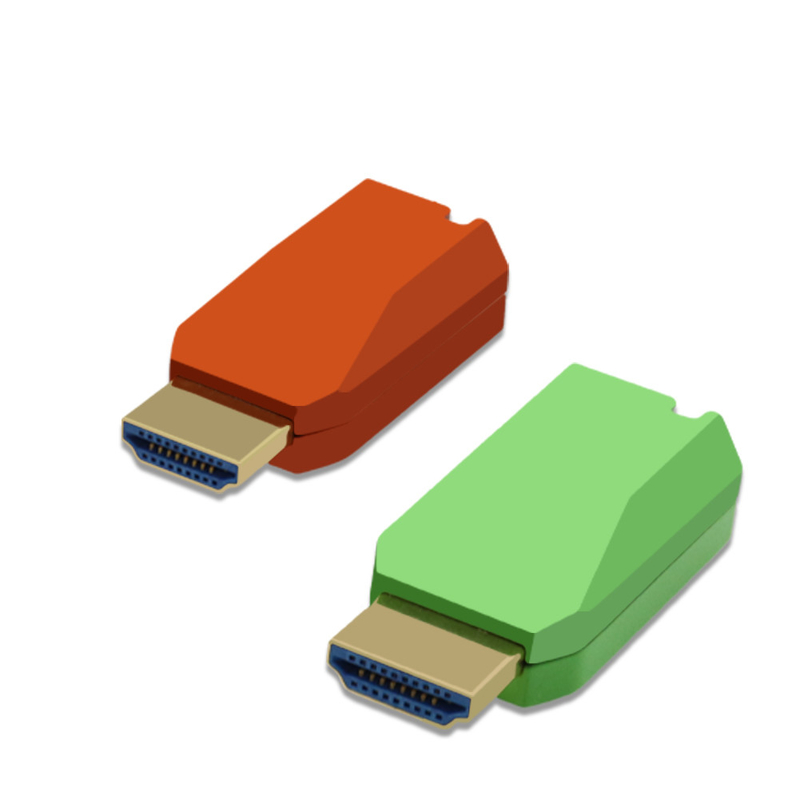

The LNK-201M is a mini 8K/60Hz HDMI2.1 over Single-Core MM compact fiber extender that is pluggable
directly into your device. Extend your 4K video source over fiber up to 100m to your desired display with
this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss
of video quality due to no copper conductor present.
The 8K HDMI optical fiber extenders are enclosed HDMI optical modules designed to support transmission
of an uncompressed lossless HDMI 2.1 signal over OM5 multimode optical fiber at 850nm, up to distances
of 100m, at a resolution of 8K/60Hz. LNK-201M-T converts an HDMI signal to a single 48Gb/s serial data
stream for transmission over single optical fibers. LNK-201M-R converts the serial data back to an HDMI
signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This
product is ideal for large-screen display, conferencing systems and home entertainment and so on. The
device has the ability of anti-interference, to ensure the stability of the signal.
Technical Indexes
| Type of Extender | Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI2.1 |
| Signal Support | HDMI 2.1 HDMI format standard |
| Video Support |
8K@60Hz/4K@120Hz/1080p/1080i/720p Up to 7680x4320@60Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| EDID | Support |
| HDCP | Support |
| CEC | Support |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 48Gbps |
| Transmission Distance | OM5 Multi Mode, up to 100M |
| Operating Temperature | -40°C to + 70°C |
| Storage Temperature | -20°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Dimension (WxDxH) | 2.24 x 0.6 x 0.55 in (57x16x14mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Operation Current | TX:150mA |
| Power Supply |
TX: 5V (take power from the HDMI interface on the Source side, some devices cannot provide sufficient power supply, need to connect external power supply) RX: need external power supply 5V, use Micro USB charging cable |
| Power Consumption | TX: <800mW; RX: <400mW |
Application
Ordering Information
| Model | Description |
| LNK-201M | Mini 8K/60Hz HDMI2.1 over Single-Core Multimode Fiber Extender, OM5 Multi-mode Fiber, 100 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
