Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, ROHS, FCC
Model Number: LNK-IMC005G Series
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: To Be Negotiated
Packaging Details: Industrial PoE Switch Standard Package
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 1000pcs/Month
Packet Buffer: |
1Mbits |
Storage Temperature: |
-40°C To 85°C (-40°F To 185°F) |
Switch Fabric: |
10Gbps/non-blocking |
Relative Humidity: |
5% To 95% Non-condensing |
Power Consumption: |
<6W (PoE In Use: <125W) |
Dimensions (WxDxH): |
95 X 70x 29m |
Packet Buffer: |
1Mbits |
Storage Temperature: |
-40°C To 85°C (-40°F To 185°F) |
Switch Fabric: |
10Gbps/non-blocking |
Relative Humidity: |
5% To 95% Non-condensing |
Power Consumption: |
<6W (PoE In Use: <125W) |
Dimensions (WxDxH): |
95 X 70x 29m |
Model:LNK-IMC005G Series
Overview

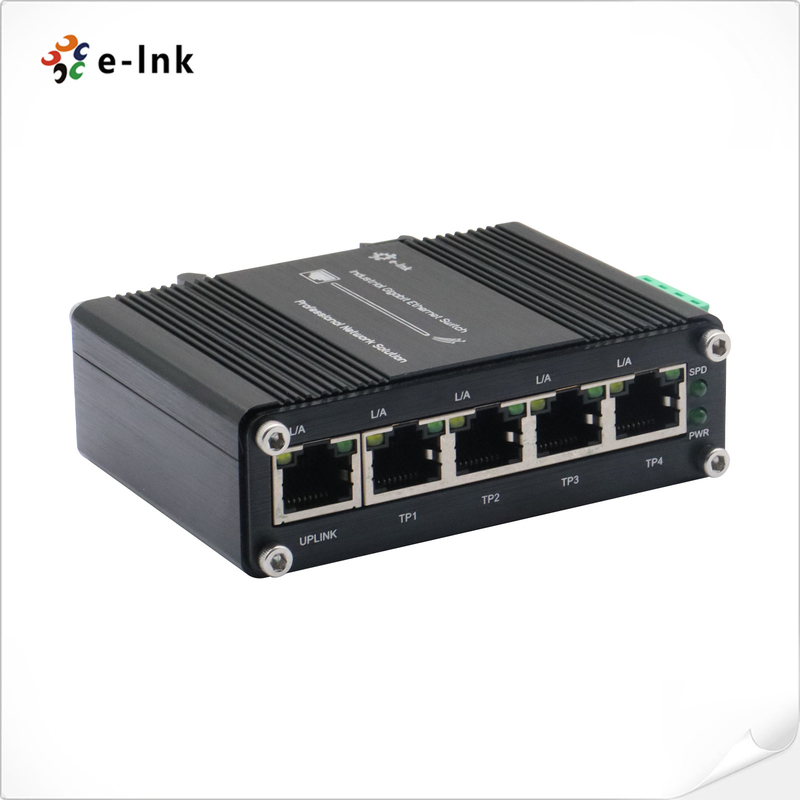

LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC
wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial
standards. With reliable and simple operation against vibration and shock, and wide operation temperature
range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and
passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good
choice for an economical solution for industrial Ethernet connections.
Features
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► PoE Optional
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3af/at Optional | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W (PoE In Use: <125W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55032:2017 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Application
Ordering Information
| Model | Description |
| LNK-IMC005G | Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
| LNK-IMC005GP | Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
