Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, ROHS, FCC
Model Number: LNK-INJ-48-95W
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: To Be Negotiated
Packaging Details: PoE Injector Standard Package
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Storage Temperature:: |
-40°C To 85°C (-40°F To 185°F) |
Processing Type:: |
Half-duplex, Full-duplex |
Half-duplex, Full-duplex: |
Cat5 UTP Up To 100m |
Connector:: |
2x RJ45 |
Relative Humidity: |
5% To 95% Non-condensing |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Storage Temperature:: |
-40°C To 85°C (-40°F To 185°F) |
Processing Type:: |
Half-duplex, Full-duplex |
Half-duplex, Full-duplex: |
Cat5 UTP Up To 100m |
Connector:: |
2x RJ45 |
Relative Humidity: |
5% To 95% Non-condensing |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Model:LNK-INJ-48-95W
Overview

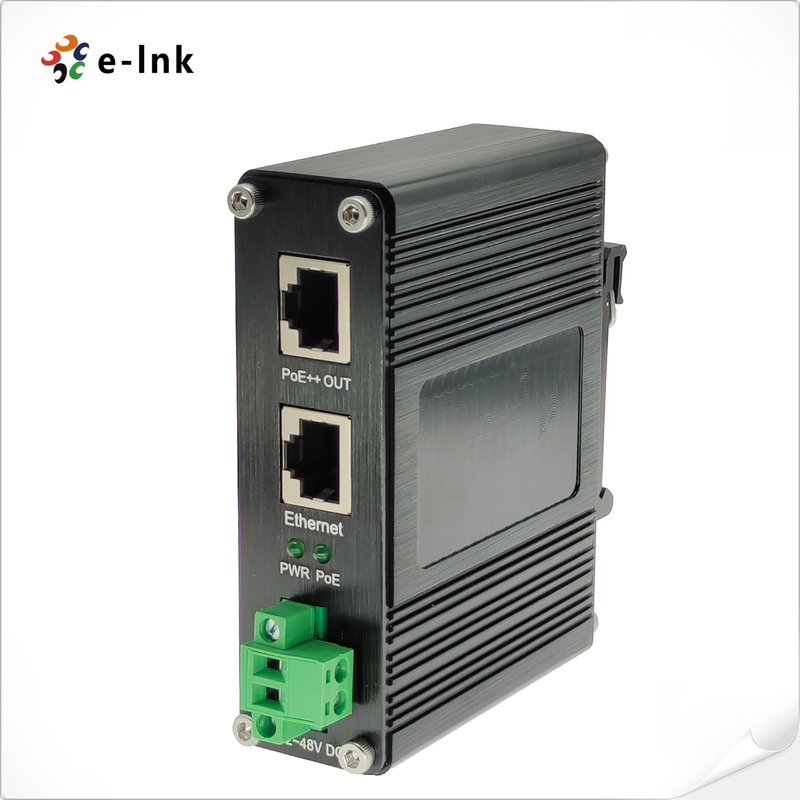

The LNK-INJ-48-95W is a ruggedized industrial-grade Gigabit single-port PoE+ injector, compliant with IEEE 802.3bt
and LTPoE++ standards. This high-performance device delivers up to 95W of PoE output power, supporting
10/100/1000Base-TX Ethernet connections. Designed with a wide input voltage range of 12~48V DC and equipped
with a voltage booster, it enables seamless integration of PoE-enabled devices like IP cameras and wireless
access points with non-PoE network switches. The injector features two fully compliant IEEE 802.3ab ports:
an Ethernet input port for switch connection and a PoE output port for powered device connection,
both supporting data transmission up to 100 meters. This solution provides a reliable power-over-Ethernet
infrastructure for industrial applications requiring robust performance and extended connectivity.
Features
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► 12~48V DC wide range power input with power booster function
► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C
Technical Indexes
| Ethernet | |
| Standards: |
IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 100W Max. |
| Power over Ethernet: | |
| Standard: | IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3af Power over Ethernet | |
| Port: | RJ45 |
| Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
| PoE Budget: |
Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | IP40 Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Standard Accessories | |
| Package Contents | LNK-INJ-48-95W |
| User's manual | |
| Wall-mount kit | |
| DIN-mount kit | |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500V | |
| ESD: 4KV/8KV | |
Application
Ordering Information
| Model | Description |
| LNK-INJ-48-95W |
Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
