Product Details
Place of Origin: China
Brand Name: E-link
Certification: Iso9001, CE, ROHS, FCC
Model Number: LNK-106M Series
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiate
Packaging Details: HDMI Fiber Extender Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Signal Support: |
HDMI 1.4a HDMI Format Standard And HDCP Compliant |
Video Support: |
1920x1200 / 1080p@60Hz, Up To 4K*2K@30Hz |
Website Specifications: |
Color Space 444, 420, 400 |
Transmission Distance: |
Multi Mode, Up To 984ft (300M) |
Storage Temperature: |
-20°C To + 85°C |
Dimension (WxDxH): |
3.15 X 0.79 X 0.35 In (80x20x9mm) |
Signal Support: |
HDMI 1.4a HDMI Format Standard And HDCP Compliant |
Video Support: |
1920x1200 / 1080p@60Hz, Up To 4K*2K@30Hz |
Website Specifications: |
Color Space 444, 420, 400 |
Transmission Distance: |
Multi Mode, Up To 984ft (300M) |
Storage Temperature: |
-20°C To + 85°C |
Dimension (WxDxH): |
3.15 X 0.79 X 0.35 In (80x20x9mm) |
Model:LNK-106M Series
Overview

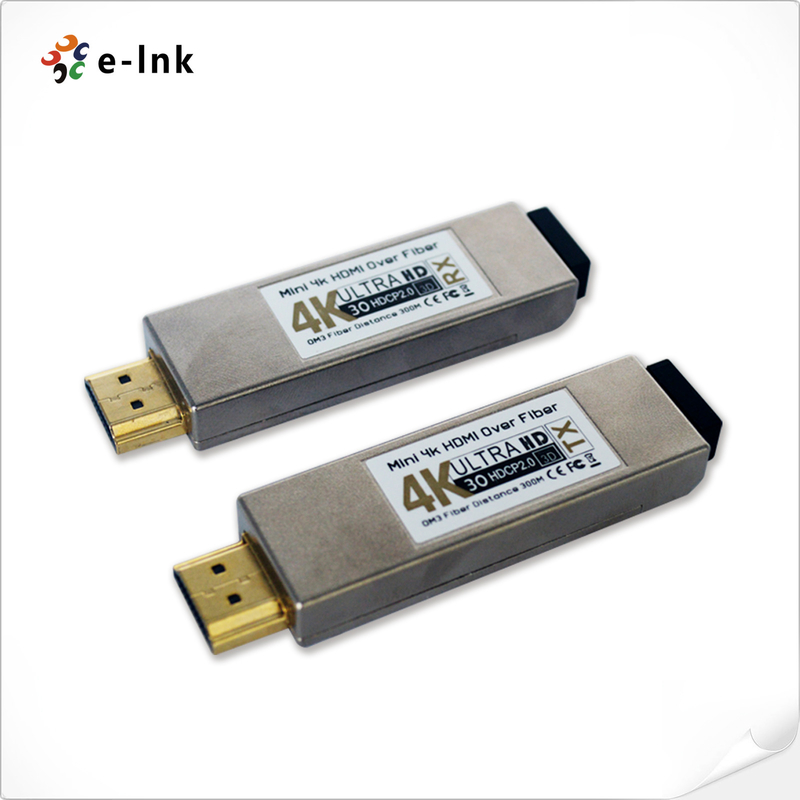

The 4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission
of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m,
at a resolution of 4Kx2K. 4 K HDMI
OPTICAL TRANSCEIVER -T converts an HDMI signal to a single 10Gb/s serial data stream for
transmission over two optical fibers. 4 K HDMI OPTICAL TRANSCEIVER -R converts the serial data back
to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China.
This product is ideal for large-screen display, conferencing systems and home entertainment and so on.
The device has the ability of anti-interference, to ensure the stability of the signal.
Features
Ø HDMI 1.4a and HCCP1.2 Support
Ø Uncompressed transmission,No delay,No losses
Ø DDC CEC HPD Signal Support
Ø Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)
Ø Supports All Modes up to 4K*2K@30Hz Resolution
Ø Standard HDMI Connector
Ø Integrated USB Connector for Power
Ø Hot-Pluggable, EMI/RFI Resistant
Ø Miniature form factor for ease of use and installation
Ø 850nm VCSEL and PIN Photodetector
Ø Video over (2) multimode fibers
Ø Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)
Ø Operating Case Temperature: 0~70°C
Technical Indexes
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Dynamic EDID | Plug & Play, no need to learn |
| Fiber Connector | Double LC Receptacle |
| Transmission Distance | Multi Mode, up to 984ft (300M) |
| Operating Temperature | 0°C to + 50°C |
| Storage Temperature | -20°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS |
| Dimension (WxDxH) | 3.15 x 0.79 x 0.35 in (80x20x9mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
Ordering Information
| Item | Description |
| LNK-106M | Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
