Product Details
Place of Origin: China
Brand Name: E-link
Certification: Iso9001, CE, ROHS, FCC
Model Number: LNK-IMC1100P series
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Media Converter Standard Carton Packaging
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Connector:: |
1x RJ45 |
Optical Port:: |
1 X SC 100Base-FX |
Input Power:: |
12~48VDC, 2-pin Terminal Block |
Power Consumption:: |
36W Max. |
Storage Temperature: |
-40°C To 85°C (-40°F To 185°F) |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Connector:: |
1x RJ45 |
Optical Port:: |
1 X SC 100Base-FX |
Input Power:: |
12~48VDC, 2-pin Terminal Block |
Power Consumption:: |
36W Max. |
Storage Temperature: |
-40°C To 85°C (-40°F To 185°F) |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |

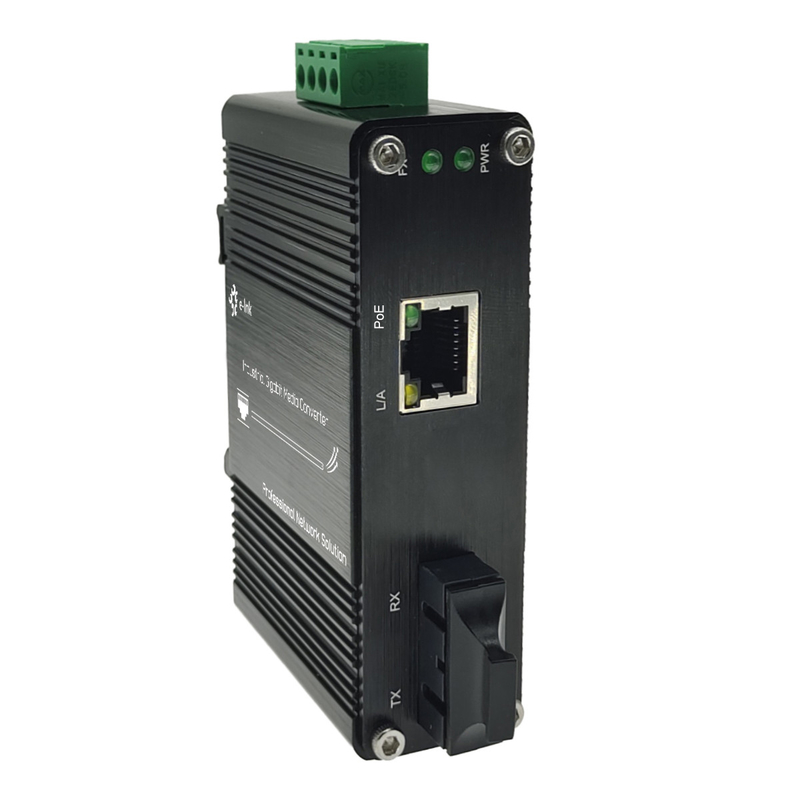

Model : LNK-IMC1100P series
Overview
The LNK-IMC1100P Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber.
The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard.
It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum
housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design
ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100P
Series are easy to mount on a DIN rail or in distribution boxes.
Features
► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100Base-FX SC
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3x Full duplex and flow control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 128K bits |
| Max Packet Length: | 1522 Bytes |
| Address Table Size | 1K MAC Addresses |
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SC 100Base-FX |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 36W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
|
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Application
Ordering information
| Model | Description |
| LNK-IMC1100P | Mini Industrial PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1100P-20 | Mini Industrial PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1100PS-20 | Mini Industrial PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
