Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, ROHS, FCC
Model Number: LNK-1100WSFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Media Converter Standard Carton Packaging
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Conversion Means: |
Media Conversion |
BER: |
<10-9 |
MTBF: |
100,000 Hours |
Power Supply: |
External Power: AC90~264V/DC100~380V Input, 5V1A Output |
Maintaining Temperature: |
-40~70ºC |
Maintaining Humidity: |
5% ~ 90% Non-condensing |
Conversion Means: |
Media Conversion |
BER: |
<10-9 |
MTBF: |
100,000 Hours |
Power Supply: |
External Power: AC90~264V/DC100~380V Input, 5V1A Output |
Maintaining Temperature: |
-40~70ºC |
Maintaining Humidity: |
5% ~ 90% Non-condensing |
Model : LNK-1100WSFP
Overview

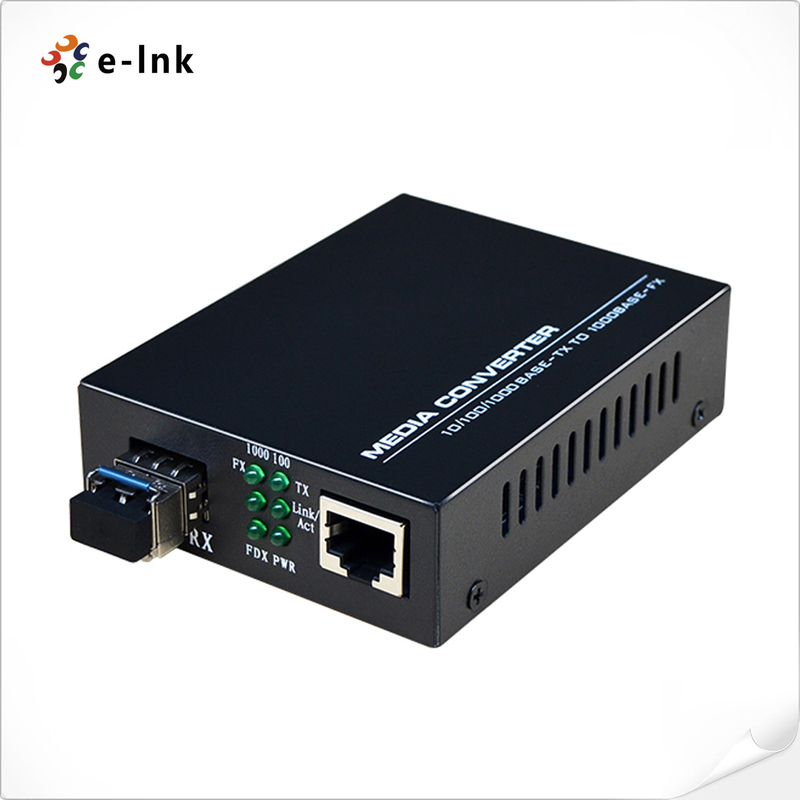

LNK-1100WSFP is an Ethernet media converter that converts media transmission between UTP Copper
cabling and fiber SFP (Small Form-Factor Plug gable) Transceivers. It complies with IEEE802.3, IEEE802.3u
and IEEE802.3x standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX,
and 1000Base-FX, inter-converting electrical signals of 10Base-T/100Base-TX twisted pairs with optical
signals of 100Base-FX. It extends the transmission distance of network from 100m via copper cable to
120 km via fiber optical cables.
Features
► Supporting inter-conversion between adaptive 10Base-T/100Base-TX with 100Base-FX
► Use Port 10/100Base-TX (RJ45), 100Base-FX (SFP slot)
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting the transmission of extra-long VLAN packets
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100Mbps Fast Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | multi-mode Dual-fiber: 2KM |
| single mode Dual-fiber: 20/40/60/80 Km | |
| single mode Single fiber: 20/40/60/80 Km | |
| Category-5 twisted pairs: 100m | |
| Port | One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
| One optical port: SFP 3.3V | |
| Conversion means | Media conversion |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | POWR (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
| Power supply | External Power: AC90~264V/DC100~380V input, 5V1A output |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
Ordering Information
| Model | Description |
| LNK-1100WSFP | 10/100Base-T to 100Base-F, SFP slot, excl. SFP module, standalone, external power adaptor |
