Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001,CE,ROHS,FCC
Model Number: LNK-1100
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negociate
Packaging Details: Media Converter Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Flow Control: |
Full Duplex: Flow Control;Half Duplex: Back Pressure |
BER: |
<19-9 |
MTBF: |
100,000 Hours |
Power Supply: |
DC 5V / 1A |
Humidity Operating: |
5% ~ 90% |
Interface Bandwidth: |
3Gbps |
Flow Control: |
Full Duplex: Flow Control;Half Duplex: Back Pressure |
BER: |
<19-9 |
MTBF: |
100,000 Hours |
Power Supply: |
DC 5V / 1A |
Humidity Operating: |
5% ~ 90% |
Interface Bandwidth: |
3Gbps |

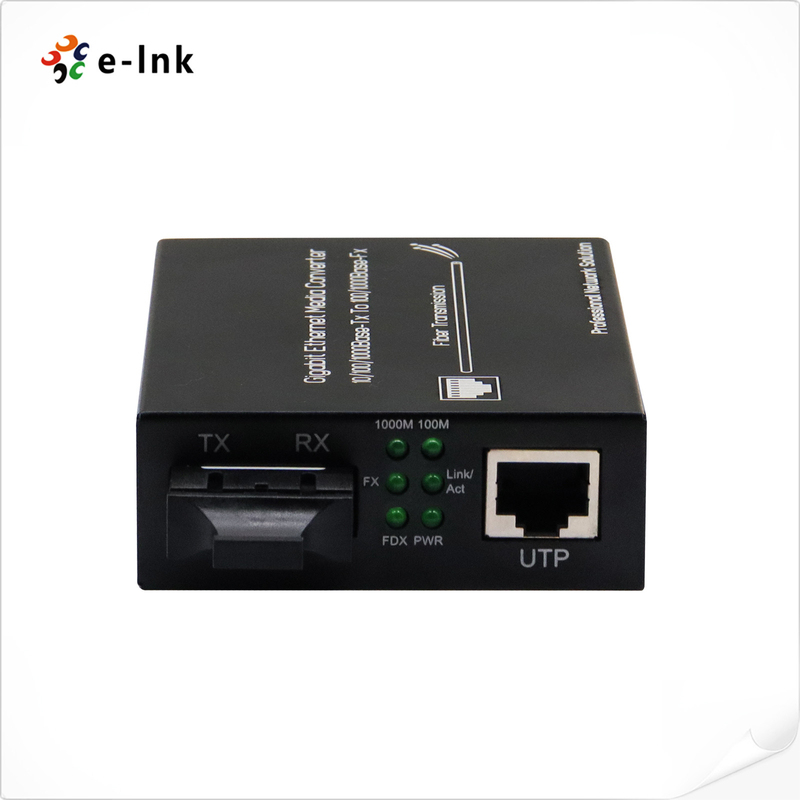

Model:LNK-1100
Overview
LNK-1100 Series Ethernet media converter can inter convert electrical signals of 10Base-T and
100Base–TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission
distance from 100m via copper cables to up to 120km via fiber optical cable. It supports transmission
in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
Features
► 10/100Mbps auto-sensed, facilitating network upgrade
► full-duplex and half-duplex auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission with optional dip-switch
► Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
Options in single mode dual fiber, multi-mode dual fiber, and single mode in
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
Dual-fiber multi-mode: 2 km; Dual-fiber single mode: 20/40/60/80/100/120 km; Single fiber single mode: 20/40/60/80/100 km Category-5 twisted pairs: 100m |
| Port |
One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
| Conversion means | Store and Forward mode or Cut-Through mode |
| Buffer space | Built in 128Kb RAM for data buffer |
| Flow control |
Full duplex: flow control; Half duplex: back pressure |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
| Power supply | DC 5V / 1A |
| Power consumption | <40W (the chassis at full load), <2W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions (W x D x H) | 71 x 94 x 26 mm |
Application
Ordering Information
| Item | Description |
| LNK-1100 | 10/100Base-T to 100Base-F, multi-mode, 2km, 1310nm, SC, standalone, external power adaptor |
| LNK-1100S-20 | 10/100Base-T to 100Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
| LNK-S1100-20 | 10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
