Product Details
Place of Origin: China
Brand Name: E-link
Certification: Iso9001, CE, ROHS, FCC
Model Number: LNK-KVM-DVI-1D1BA1GO
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiate
Packaging Details: DVI Fiber Extender Standard Carton Packaging
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Power Supply: |
The Power Adapter: DC 12V/1A |
Power Consumption: |
MAX 6W |
Temperature: |
Operating: -5℃ ~ +70℃ |
Humidity: |
Operating: 5% ~ 90% |
Standards: |
DVI 1.0; HDCP 1.2 |
Operating Temperature: |
-5℃ ~ +70℃ |
Power Supply: |
The Power Adapter: DC 12V/1A |
Power Consumption: |
MAX 6W |
Temperature: |
Operating: -5℃ ~ +70℃ |
Humidity: |
Operating: 5% ~ 90% |
Standards: |
DVI 1.0; HDCP 1.2 |
Operating Temperature: |
-5℃ ~ +70℃ |

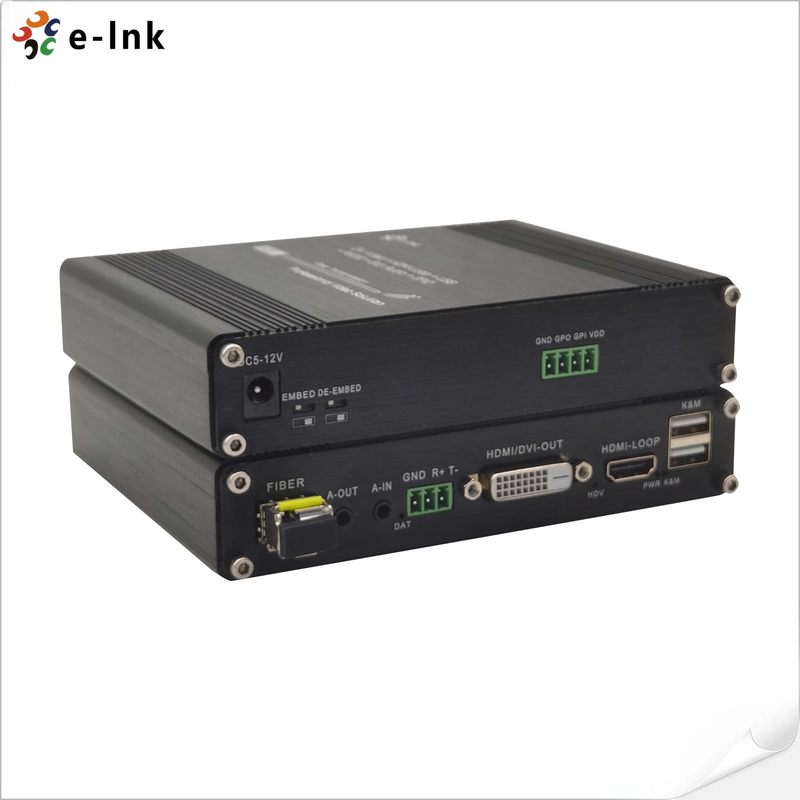

Model:LNK-KVM-DVI-1D1BA1GO
Overview
The LNK-KVM-DVI-1D1BA1GO Fiber Optic Extender delivers long-distance DVI signal transmission over a
single fiber cable, supporting 1080P video, KVM, RS232, GPIO, and audio. With exceptional stability and security,
it’s perfect for applications demanding high-quality, long-range signal extension.
Features
► Transmits DVI video signals up to 60km over one fiber optic cable;
► Support video resolution up to 1920*1200P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► Support HDMI loop out
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play
Technical Indexes
| Parameter | Description | |
| Video | Standards | DVI 1.0; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 2.97Gbps | |
| Resolution |
1920*1200@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
|
| Connector | DVI-D | |
| Impedance | 100Ω | |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo | |
| K/M | Interface |
To PC: MINI-USB To keyboard and mouse: USB-A |
| GPIO | Interface | Industrial terminal |
| RS232 | Interface | Industrial terminal |
| Signal direction | Unidirectional | |
| Baud rate | Self-adaptive, Max:115200bps | |
| Data bits | 8 | |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber | |
| Wavelength | Single-mode 1310nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance | standard 10km | |
| Other | Power supply | The power adapter: DC 12V/1A |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 148*115*28mm | |
| The warranty | 1-year warranty | |
Application
Industrial Automation
Broadcasting & AV
Surveillance
Medical Imaging
Corporate/Education
Transportation
Ordering Information
| Model | Description |
| LNK-KVM-DVI-1D1BA1GO | 1Ch 1080P DVI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM |
