Product Details
Place of Origin: China
Brand Name: E-link
Certification: Iso9001, CE, ROHS, FCC
Model Number: LNK-HF100DA
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: HDMI Fiber Extender Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Chroma Subsampling: |
Max 3840*2160@30Hz (4:4:4, 4:2:2),Max 3840*2160@60Hz (4:2:0) |
Fiber Connector: |
SFP/LC |
Transmission Distance: |
10.2Gbps |
Power Supply: |
5V DC, USB Typ-C |
Temperature Operating: |
-20℃ ~ +70℃ |
Humidity Operating: |
5% ~ 90% |
Chroma Subsampling: |
Max 3840*2160@30Hz (4:4:4, 4:2:2),Max 3840*2160@60Hz (4:2:0) |
Fiber Connector: |
SFP/LC |
Transmission Distance: |
10.2Gbps |
Power Supply: |
5V DC, USB Typ-C |
Temperature Operating: |
-20℃ ~ +70℃ |
Humidity Operating: |
5% ~ 90% |

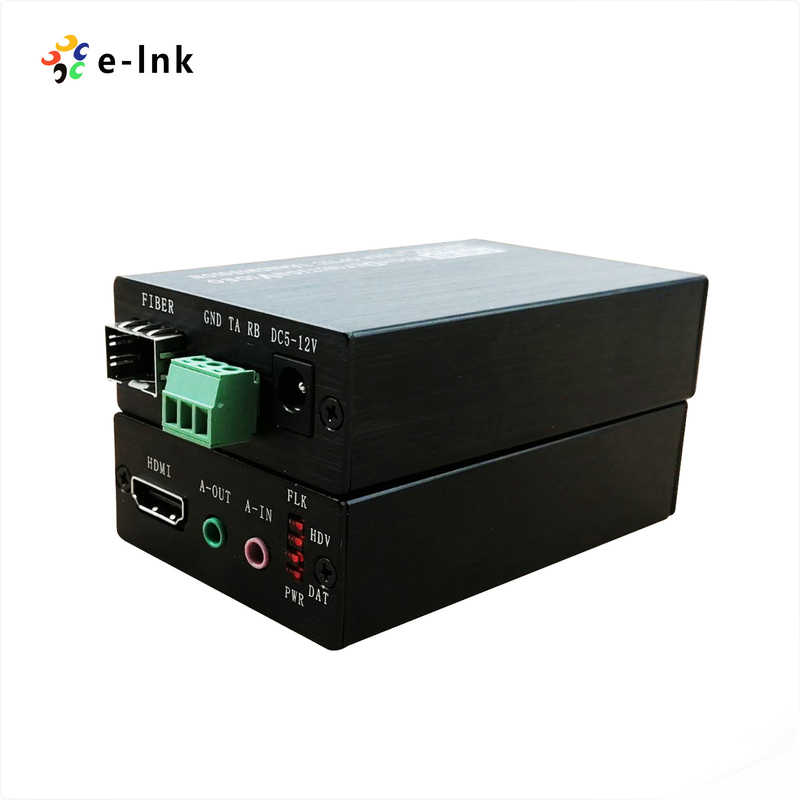

Model:LNK-HF100DA
Overview
The LNK-HF100DA Series HDMI Fiber optic extender provides extension of HDMI, bidirectional
audio and RS232 over one fiber optic cable, it supports HDMI1.4 mode, it is fully compatible with
HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. The extender
can use for a wide range of applications requiring long distance transmission of high resolution with
high quality by its good stability and powerful security.
Features
► Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard;
► Single-port HDMI 1.4b receiver
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
► Support EDID
Technical Indexes
| Parameter | Description | |
|
Video
|
Standards | HDMI1.4B 3D; HDCP1.4 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Compliant |
1080P@50/59.95/60Hz,( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, Special support 1600*1200 @60HZ |
|
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| HDMI Cable Range | <5Meter (Resolution up to 1920*1200@60Hz) | |
| Audio | Interface | 3.5MM external stereo audio |
| Transmitter | 1Ch Input + 1Ch Ouptut | |
| Receiver | 1Ch Input + 1Ch Ouptut | |
| RS232 | Interface | 3-Pin Terminal Block |
| Baud Rate | ≤115200bps | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | 850nm/1310nm/1550nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance |
Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km |
|
| IndexOther | Power supply | The power adapter: DC 5~12V |
| Power dissipation | MAX 4W | |
| Temperature | Operating: -20℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 92 x 57 x 23 (mm) | |
Application
Ordering information
| Model | Description |
| LNK-HF100DA | 1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi-mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs |
| LNK-HF100DA-20 | 1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Single-mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |
