Product Details
Place of Origin: China
Brand Name: E-link
Certification: Iso9001, CE, ROHS, FCC
Model Number: LNK-FSB-D-12SC
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Mount Fiber Patch Panel Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Adapters:: |
12 Ports Duplex SC |
Installation:: |
Din-rail Mounting |
Material:: |
Aluminum |
Operating Temperature:: |
-40°C To 80°C |
Strain Relief: |
PG Gland |
SC-Duplex: |
Max. 12pcs |
Adapters:: |
12 Ports Duplex SC |
Installation:: |
Din-rail Mounting |
Material:: |
Aluminum |
Operating Temperature:: |
-40°C To 80°C |
Strain Relief: |
PG Gland |
SC-Duplex: |
Max. 12pcs |

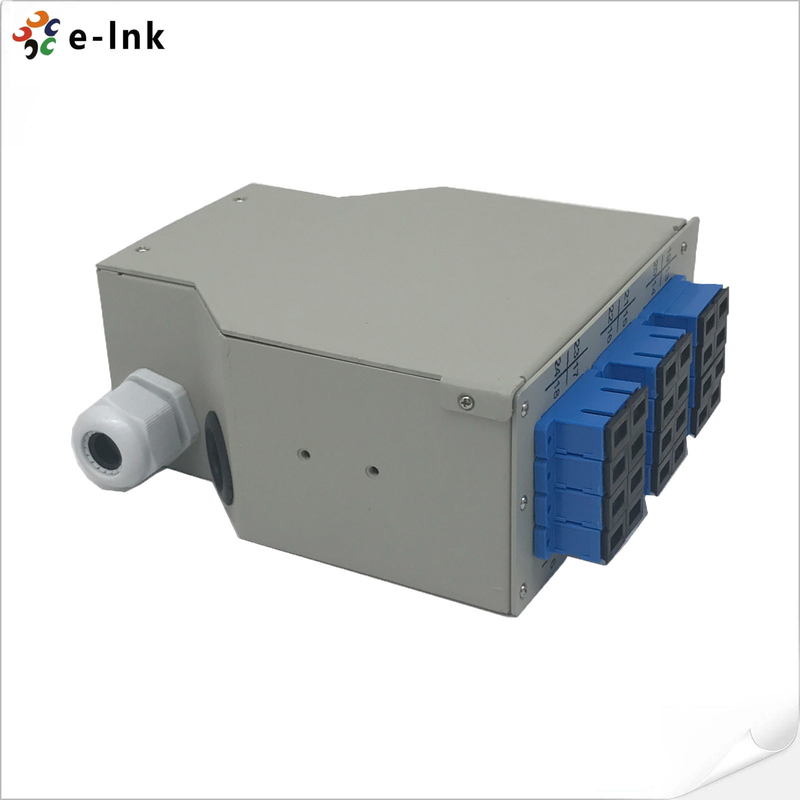

Model:LNK-FSB-D-12SC
Overview
E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion
splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum with natural
finishes making it light weight and compact in size. Features designed to save space especially when mounted
within enclosures or cabinet with other din rail mount equipment. The patch panel can be loaded with 12 SC
duplex adapters.
Material
· Al (Aluminum)
Features
► Up to 12 ports SC-Duplex adapters
► Din-rail mounting
► Space-saving installation
► IP20 protection
► 2x rear entries (PG 11 cable gland)
► Grey color (RAL 7035)
► -40°C to 80°C (-40°F to 176°F) operating temperature
► Other configurations on demand
Technical Indexes
| General | |
| Application | Harsh environment, |
| Design | Splice distributor |
| Color | Gray |
| Dimensions (LxWxH) | 131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch) |
| Weight | 0.6KG |
| Mounting Options | DIN-Rail |
| Connections/Interfaces | |
| Cable access/outlet | From top or bottom, straight or inclined |
| Equipped Adapters | |
| SC-Duplex | Max. 12pcs |
| Mechanical | |
| Strain relief | PG gland |
| Materials | |
| Casing | Al (Aluminum) |
| Model | Description |
| LNK-FSB-D-12SC | 12SC Duplex DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs SC/PC SM Duplex adapters |
