Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, ROHS, FCC
Model Number: LNK-FSB-D-12LC
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Mount Fiber Patch Panel Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Cable Entries Port:: |
2 Port Cable |
Installation:: |
Din Rail Mounting |
Casing: |
Al (Aluminum) |
LC-Quad: |
Max. 12pcs |
LCrain Relief: |
PG Gland |
Weight: |
0.6KG |
Cable Entries Port:: |
2 Port Cable |
Installation:: |
Din Rail Mounting |
Casing: |
Al (Aluminum) |
LC-Quad: |
Max. 12pcs |
LCrain Relief: |
PG Gland |
Weight: |
0.6KG |

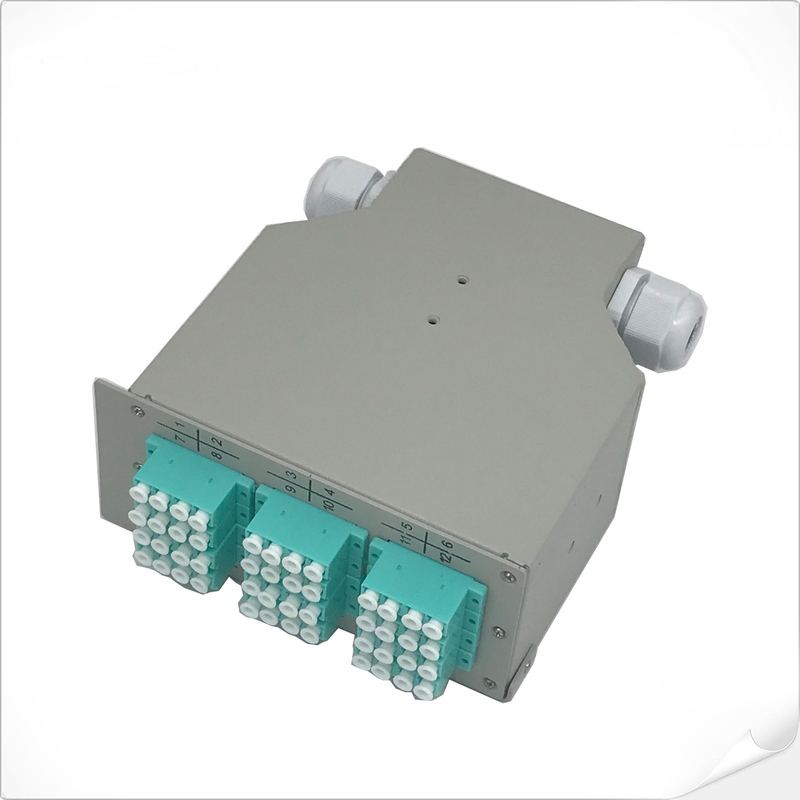

Model :LNK-FSB-D-12LC
Overview
E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion
splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum with natural finishes
making it light weight and compact in size.
Features designed to save space especially when mounted within enclosures or cabinet with other din rail mount
equipment. The patch panel can be loaded with 12 LC Quad adapters.
Features
► Up to 12 ports LC-Quad adapters
► Din-rail mounting
► Space-saving installation
► IP20 protection
► 2x rear entries (PG 11 cable gland)
► Grey color (RAL 7035)
► -40°C to 80°C (-40°F to 176°F) operating temperature
► Other configurations on demand
Technical Indexes
| General | |
| Application | Harsh environment, |
| Design | Splice distributor |
| Color | Gray |
| Dimensions (LxWxH) | 131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch) |
| Weight | 0.6KG |
| Mounting Options | DIN-Rail |
| Connections/Interfaces | |
| Cable access/outlet | From top or bottom, straight or inclined |
| Equipped Adapters | |
| LC-Quad | Max. 12pcs |
| Mechanical | |
| LCrain relief | PG gland |
| Materials | |
| Casing | Al (Aluminum) |
Ordering Information
| Model | Description |
| LNK-FSB-D-12LC | 12LC Quad DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs LC/PC SM Quad adapters |
