Product Details
Place of Origin: China
Brand Name: E-link
Certification: Iso9001, CE, ROHS, FCC
Model Number: LNK-INJ301
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Converterl Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Port: |
RJ45 |
Max. Power Per Port: |
30W Max Per Port (Alternative B Mode) |
Storage Temperature: |
-40°C To 85°C (-40°F To 185°F) |
Humidity Level: |
5% To 95% Non-condensing |
Energy Consumption: |
36W Max. |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Port: |
RJ45 |
Max. Power Per Port: |
30W Max Per Port (Alternative B Mode) |
Storage Temperature: |
-40°C To 85°C (-40°F To 185°F) |
Humidity Level: |
5% To 95% Non-condensing |
Energy Consumption: |
36W Max. |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Model:LNK-INJ301
Overview

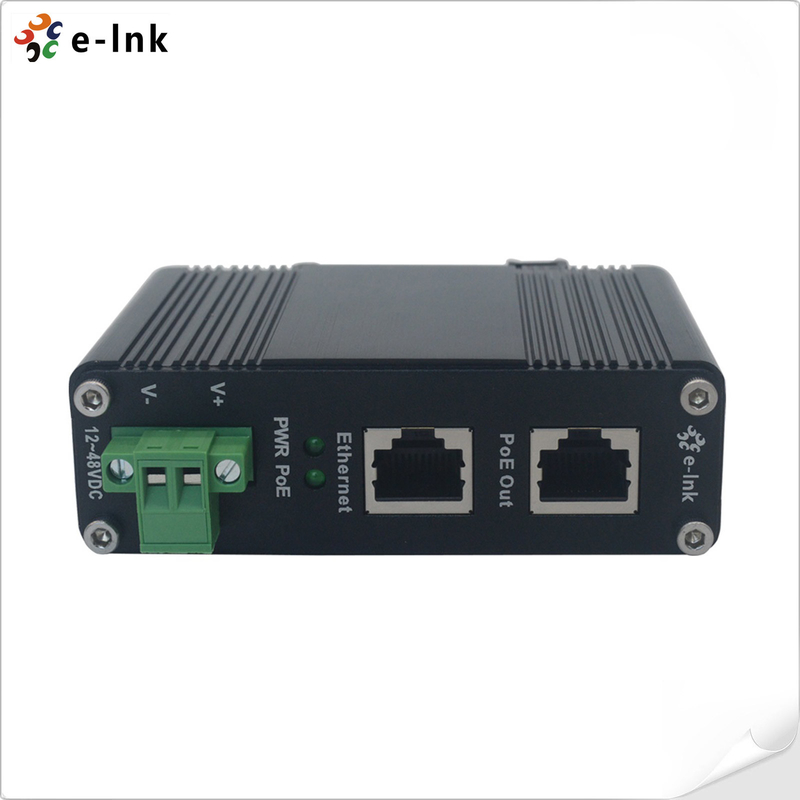

The LNK-INJ301 is a hardened Gigabit high-power PoE injector designed to enable
the connection of IEEE 802.3af/at PoE devices, such as cameras and access points, to a non-PoE LAN switch
within a 100m distance.
Both the Ethernet port (connected to the switch) and the PoE Out port (connected to the PoE device) support
10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port also complies with IEEE 802.3at.
The LNK-INJ301 offers an integrated power solution with a wide voltage range of 12~48VDC, making it ideal
for high-availability applications.
Features
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500V | |
| ESD: 4KV/8KV | |
Application
Ordering Information
| Model | Description |
| LNK-INJ301 | 12~48VDC Power Input Industrial Gigabit PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
