Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, ROHS, FCC
Model Number: LNK-INJ302
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negociate
Packaging Details: PoE Injector Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Port: |
RJ45 |
Maximum Port Power: |
60W Max (Alternative B Mode) |
Connector: |
4x RJ45 |
Electrical Consumption: |
70W Max. |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Port: |
RJ45 |
Maximum Port Power: |
60W Max (Alternative B Mode) |
Connector: |
4x RJ45 |
Electrical Consumption: |
70W Max. |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |

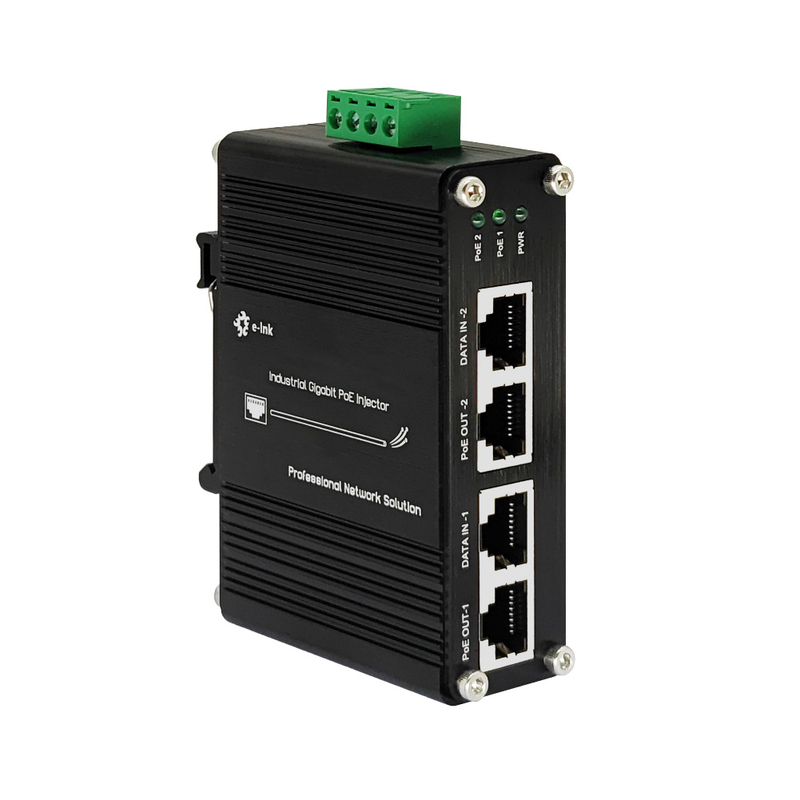

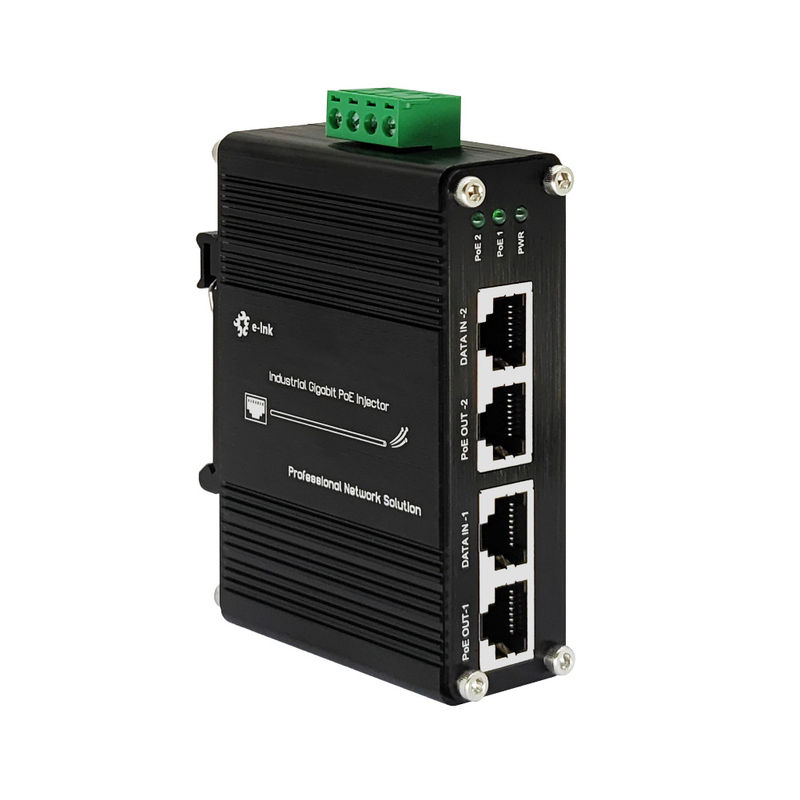

Model:LNK-INJ302
Overview
The LNK-INJ302 is a hardened 2-port Gigabit High Power PoE Injector designed to connect IEEE 802.3af/at PoE devices,
such as cameras and access points, to a non-PoE LAN switch within a 100m distance.
Both the Ethernet port (to the switch) and the PoE Out port (to the PoE device) support 10/100/1000Base-T and
comply with IEEE 802.3ab. The PoE Out port is also IEEE 802.3at compliant.
With a wide input voltage range of 12~48VDC, the LNK-INJ302 provides an integrated power solution,
making it ideal for high-availability applications.
Features
► 12~48VDC Power Input
► 2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Max 60W PoE at one port, total POE power less than 60W
► Support 10/100/1000Base-TX
► Support DIN-Rail & Wall-mount installation.
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 4x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 70W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 60W Max (Alternative B Mode) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.26Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| CE-EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
Application
Order Information
| Model | Description |
| LNK-INJ302 | 12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
