Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, ROHS, FCC
Model Number: LNK-IRS93 series
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: Fiber Optic Accessories Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000/Month
Serial Interface: |
Industrial Terminal |
Rate: |
Max 2Mbps |
Storage Temperature: |
-40°C To +85°C |
Fiber Connector: |
SC Standard, ST/FC/LC Optional |
Storage Humidity: |
5%~90% Non-condescending |
Dimensions: |
95(L)*70(W)*29(H) Mm |
Serial Interface: |
Industrial Terminal |
Rate: |
Max 2Mbps |
Storage Temperature: |
-40°C To +85°C |
Fiber Connector: |
SC Standard, ST/FC/LC Optional |
Storage Humidity: |
5%~90% Non-condescending |
Dimensions: |
95(L)*70(W)*29(H) Mm |
Plug-and-play functionality, supports hot-swapping
Extends Bi-directional RS-232/RS-485/RS-422 communication up to 2Km over MMF and 80Km over SMF
Compatible with EIA/TIA RS232/485/422 standards, supporting 0~2Mbps data rates
Transparent serial data transmission with self-adaptive baud rate, no configuration needed
High-speed serial data supports DMX512 for Stage Lighting Control
Compatible with both DIN-Rail and wall-mounted installations
Integrated surge and electrostatic protection
Equipped with status and diagnostic indicator LEDs
Designed for harsh environments with an operating range of -40°C to 75°C (-40°F to 176°F)

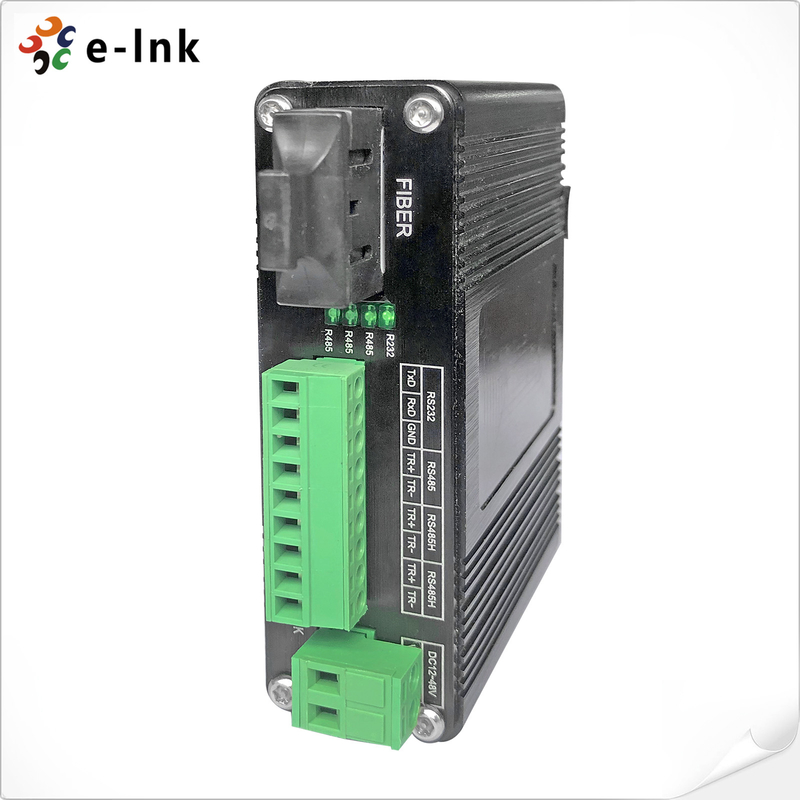

| Model | LNK-IRS93 Series |
| Fiber Connector | SC standard, ST/FC/LC optional |
| Fiber Distance | 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km |
| Serial Interface | Industrial Terminal |
| Signal Ports |
1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422 |
| Standard | EIA /TIA RS232/485/422 |
| Serial Distance | RS232: 15 meters, RS485/422: 1000 meters |
| Rate | Max 2Mbps |
| RS-232 | TXD, RXD, GND - Bi-directional |
| RS-485 | D+, D-, GND - Bi-directional |
| Power Supply | DC12~48V |
| Power rate | <5W |
| Static protection | 15KV electric static discharge (ESD) protection |
| Surge protection | 1500W/sec surge protection |
| Operation Temperature | -25°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions | 95(L)*70(W)*29(H) mm |
| Weight | 0.25kg/pcs |
Ordering Information
| Model | Description |
| LNK-IRS93-SFP | Industrial Serial RS232/RS485/RS422 with SFP port |
| LNK-IRS93-SCMM | Industrial Serial RS232/RS485/RS422 , SC MM 850nm, 550m |
| LNK-IRS93-SC20 | Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
