Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-IMC306P-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Packaging Details: Industrial POE Switch Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
POE: |
IEEE 802.3af/at Power Over Ethernet |
RJ45 Ports: |
6 X 10/100M RJ45 |
Optical Ports: |
3 X 100M SFP |
Power Input: |
48-57V DC |
POE: |
IEEE 802.3af/at Power Over Ethernet |
RJ45 Ports: |
6 X 10/100M RJ45 |
Optical Ports: |
3 X 100M SFP |
Power Input: |
48-57V DC |

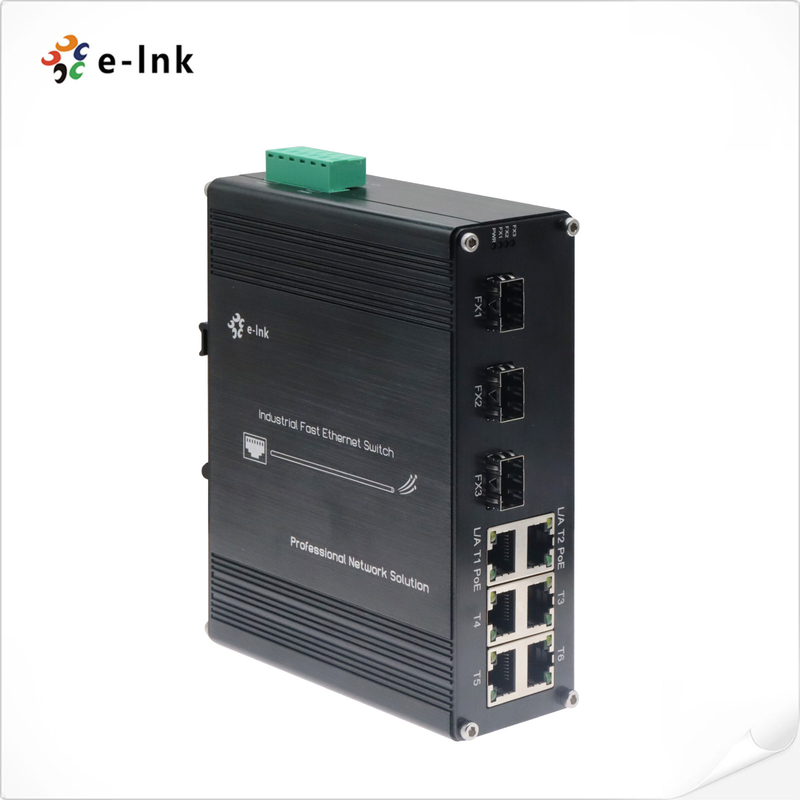

Industrial 6-Port 10/100T 802.3af/at PoE + 3-Port 100BASE-FX Ethernet Switch
Industrial POE Switch Advantages
Specifications
| Interface | |
| Connector: | 6 x RJ45 |
| Optical Port: | 3 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 180W Max. (PoE in use) |
| 5W Max. (PoE not in use) | |
| Standard: | IEEE802.3af/at |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 6 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Hardware: | |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |
Overview
LNK-IMC306P Series is 6 ports 10/100Base-TX + 3 port 100Base-FX Hardened PoE switch.
Order Information
| Model | Description |
| LNK-IMC306P | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC306P-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC306PS-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC306PF-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC306P-SFP | Industrial 6-port 10/100BASE-T (6-port PoE+) + 3-port 100BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
