Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,RoHs
Model Number: LNK-MHA4K Series
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: HDMI Fiber Extender standard export package
Delivery Time: 3-6working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Power Supply: |
5~12V DC |
Transmission Distance: |
300m (Over OM3 Fiber);Up To 80km (Over Single-mode Fiber) |
Video Support: |
1920x1200 / 1080p@60Hz, Up To 4K*2K@30Hz |
Audio Support: |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
Operating Temperature: |
-10 To + 60°C |
Storage Temperature: |
-20 To + 85°C |
Power Supply: |
5~12V DC |
Transmission Distance: |
300m (Over OM3 Fiber);Up To 80km (Over Single-mode Fiber) |
Video Support: |
1920x1200 / 1080p@60Hz, Up To 4K*2K@30Hz |
Audio Support: |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
Operating Temperature: |
-10 To + 60°C |
Storage Temperature: |
-20 To + 85°C |

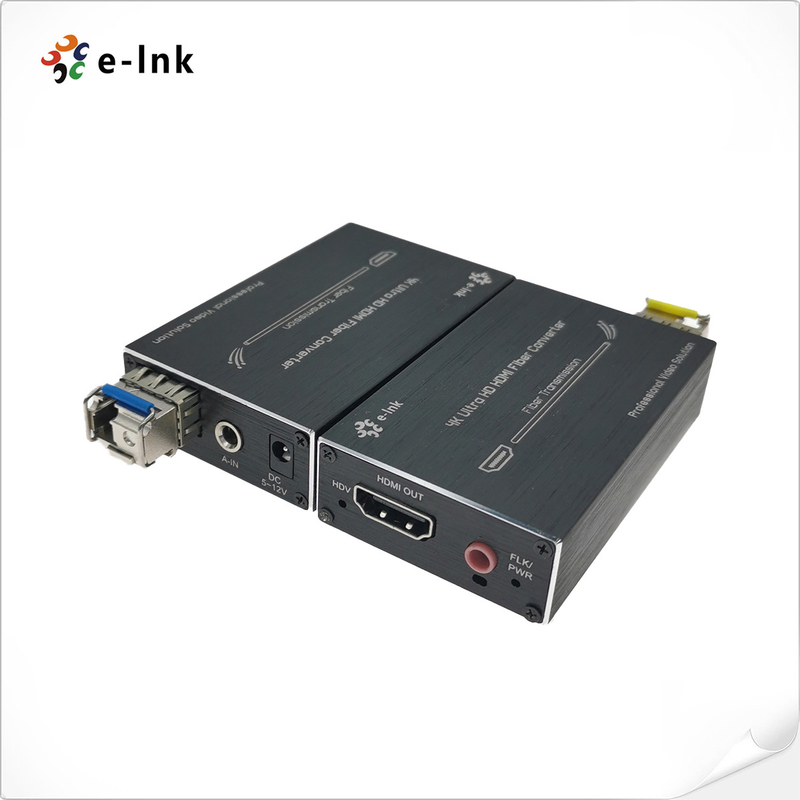

Micro Mini 4K HDMI Fiber Extender with External Audio
Micro Mini 4K HDMI Fiber Extender with External Audio Advantages
► HDMI 1.4a and HCCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC CEC HPD Signal Support
► Data rate up to 10.3Gbps
► Transmission distance up to 80km over fiber cable
► Support external stereo audio
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► 850nm VCSEL and PIN Photo detector
► Operating Case Temperature: -10~60°C
Overview
The LNK-MHA4K Series 4K HDMI Fiber Extender are designed to support transmission of an
uncompressed lossless HDMI 1.4a signal and stereo audio over optical fiber up to distances of 80km, at
a resolution of 4Kx2K. The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for
transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The
transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is
ideal for large-screen display, conferencing systems and home entertainment and so on. The device has
the ability of anti-interference, to ensure the stability of the signal.
Technical Indexes
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Connector | Female HDMI type A |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling | Color space, 420, 400 |
| Dynamic EDID | Plug & Play, no need to learn |
| Audio Interface | 3.5MM external stereo audio |
| Fiber Connector | SFP/LC |
| Bandwidth | 10.3Gbps |
| Transmission Distance | 300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) | |
| Operating Temperature | -10 to + 60°C |
| Storage Temperature | -20 to + 85°C |
| Humidity | 5% to 90% RH (non-condensing) |
| MTBF | 100,000 hours |
| Dimension (WxDxH) | 2.87 x 1.73 x 0.69in (73x44x17mm) |
| Weight | 60g / 0.13 lb |
| Power Supply | 5~12V DC |
| Power dissipation | <5W |
| Safety Approvals | CE, FCC, Rohs |
Application
Ordering Information
| Model | Description |
| LNK-MHA4K-MM | Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S20 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S40 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-80 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S80 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
