Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-IMC10FST-MM
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Fiber Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Fiber Media Converter |
Operating Temperature: |
-40°C To 75°C |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
Fiber Media Converter |
Operating Temperature: |
-40°C To 75°C |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Fiber Media Converter Advantages
► Auto-MDI/MDIX
► Complies with 802.3 10Base-T and 10Base-FL standards
► Extends network span from up to 2km(Multi mode)
► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
► Provides LEDs for easy network monitoring
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 |
| 10 Base-T | |
| 10 Base-FL | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3x Full duplex and flow control | |
| Conversion Means: | Store and Forward mode or Cut-Through mode |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| Wavelength: | 850nm |
| Buffer Space: | Built in 128Kb RAM for data buffer |
| Flow Control: |
Full duplex: flow control; Half duplex: back pressure |
| Cable Length: |
50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL 100 meters max. for UTP 2000 meters max. for fiber optic Multi-mode |
| Transmission type: | Base band |
| Connection switch: | 2-position 10Base-T switch on RJ-45 side (hub or W/S) |
Overview

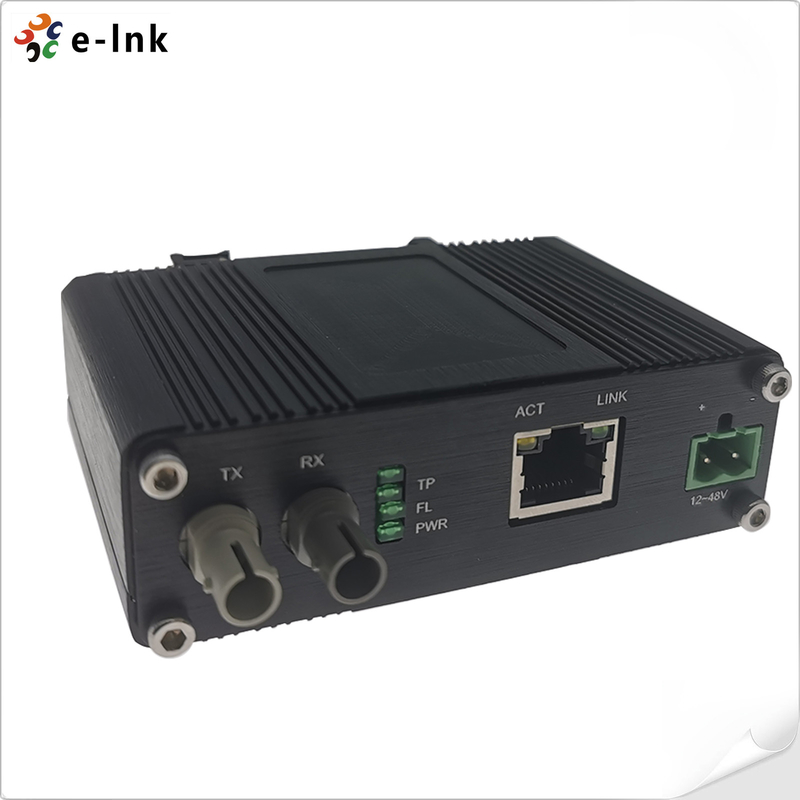

LNK-IMC10FST-MM converts your existing 10Base-T Ethernet to a 10Base-FL network with single mode or multimode fiber
optic cable up to 20,000 meters.The Ethernet port supports both half-duplex and full-duplex mode. Connect 10 Mbps Ethernet
segments to fiber segments without using crossover cables. With a E-link 10Mbps Media Converter, you no longer have to deal
with mismatched transmit and receive cable pairs. This converter contains a switch that senses the type of circuit connected to
the UTP port and automatically configures the port to match. Because the UTP side is autosensing to MDI/MDI-X, you can use
either a straight or crossed cable to connect a switch or NIC.
Application
Ordering Information
| Model | Description |
| LNK-IMC10FST-MM | Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
