Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: E-link LNK-LC100 series
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: Fiber Optic Accessories Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Standards: |
IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z |
Data Speed: |
100Mbits/s (Half Duplex), 200Mbits/s (Full Duplex) |
Casing: |
Aluminum Case |
Operating Temperature: |
0℃～50℃ |
Standards: |
IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z |
Data Speed: |
100Mbits/s (Half Duplex), 200Mbits/s (Full Duplex) |
Casing: |
Aluminum Case |
Operating Temperature: |
0℃～50℃ |
100M Fiber Optic LAN Card High bandwidth 100Mbps Network Speed
Fiber Optic Accessories Advantages:
► Plug and Play
► IEEE 802.3 Full-Duplex Flow Control
► IEEE 802.3u 100Base-FX
► High bandwidth 100Mbps Network Speed
► Supports Full-Duplex Mode
► Compliant to ACPI 1.0 specification
► IEEE 802.3 Full-Duplex Flow Control
► IEEE 802.1Q VLAN Tagging
► IEEE 802.1p Priority Tagging
► Management statistics gathering
► IP multicast receive and filter support using 64 bit hash table
Standards
► IEEE 802.3u 100Base-FX
► IEEE 802.3 Full-Duplex Flow Control
► IEEE 802.1Q VLAN Tagging
► IEEE 802.1p Priority Tagging
► PCI Local Bus Revision 2.2
► PCI Bus Power Management Interface Revision 1.1
► Compliant to ACPI 1.0 specification
► Windows Vista x86 Driver (32-bit)
► Windows XP 32bit /64bit
► Windows 2000(32-bit)
► Windows Server 2008 SP2 32-bit Driver
► SCO UNIX 5
► FreeBSD 4.X
► FreeBSD 5.1
► Linux Driver for Kernel 2.6.X and 2.4.X( for Gentoo Linux Compiler)
► Solaris 8
► UNIXWARE 7

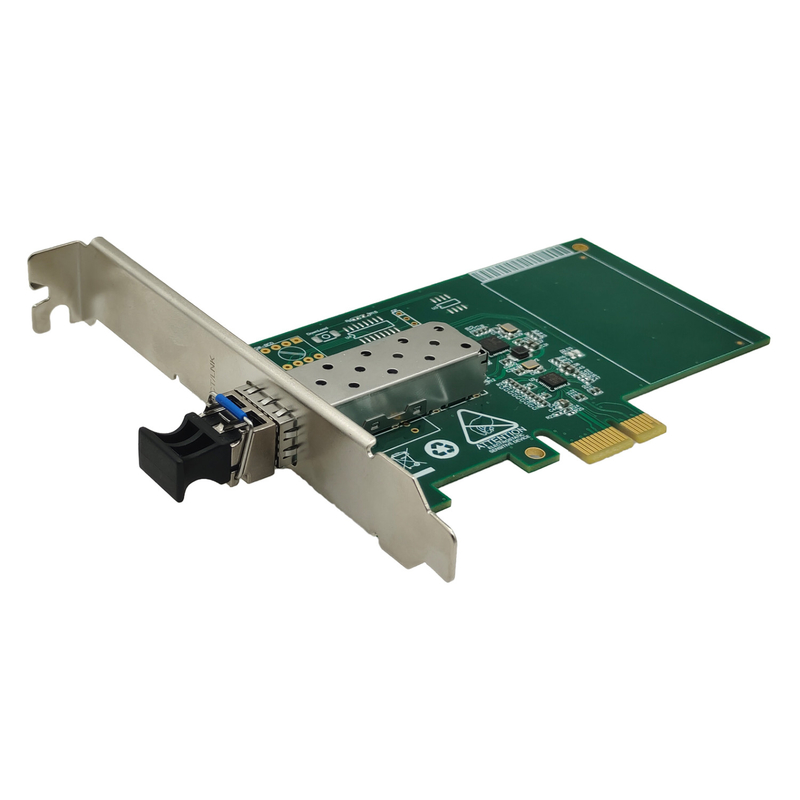

E-link LNK-LC100 Series Single Port Fiber 100M PCI-E NIC (Network Interface Card) have two kinds
of interface: 1X9 Module with SC Connector and SFP Module. It is a Fiber 100M Ethernet to PCI-E bus
adapter that fully complies with all IEEE 802.3u 100Base-FX standards. LNK-LC100-SC Series Single
Port Fiber 100M PCI-E NIC support one SC Fiber port(Duplex Fiber/ Single Fiber Optional),
LNK-LC100-SFP Series Single Port Fiber 100M PCI-E NIC(Network Interface Card) support one SFP
port(Duplex Fiber/ Single Fiber Optional). It can offer 100Mbps Internet access, It provides up to
200Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced
functions like VLAN filtering packet processing, the adapter provides added performance, flexible
configuration and secure networking for users in a standard-based environment.
Technological Advantage
Eliminate server bottlenecks and migrate existing Category-5 networks to 100M Ethernet easily
and cost-effectively with the LNK-LC100 Series NIC (Network Interface Card). Featuring flexible,
auto-negotiating performance, the LNK-LC100 NIC (Network Interface Card) is designed to
automatically scale with growing networks. The LNK-LC100 NIC(Network Interface Card) comes
with drivers for the most popular operating systems and can be integrated into a larger network.
However, this Guide is designed to help you network two computers running Windows 7/8, XP,
2000, 2003 and Windows Server 2008 in a peer-to-peer configuration. The standards-based
management features and wide network operating system support help to ensure extensive
compatibility with the latest server and networking environments.
Technical Indexs
| Product Model | LNK-LC100 Series: Single Port Fiber 100M PCI-E NIC |
| Standards | IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z |
| TX/RX data buffer | Large 2Kb Tx, 2Kb Rx FIFO buffers |
| Port Numbers | LNK-LC100-SC Series: SC Connector*1( Duplex Fiber / Single Fiber Optional) |
| LNK-LC100-SFP Series: SFP*1( Duplex Fiber / Single Fiber Optional) | |
| Media | Single Mode Fiber, Multi Mode Fiber |
| Transmitting Distance | Single Fiber SMF, 1310nm/1550nm(1490nm),20/40/60km |
| Duplex Fiber SMF, 1310nm or 1550nm(1490nm), 20/40/60/km | |
| Duplex Fiber MMF, 850nm, 2Km | |
| Data Speed | 100Mbits/s (Half duplex), 200Mbits/s (Full duplex) |
| Host Interface | PCI 2.2 Specifications |
| Consumption | Max. 2W, +5VDC@0.4A |
| Ambient Temperature | Storage Temperature:-20℃～65℃； Storage humidity:5％～90％ RH Non-condensing |
| Operation temperature:0℃～50℃；Operation humidity:10％～90％ RH Non-condensing |
Orrdering Information
| Model | Description |
| LNK-LC100-SC | 100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, MMF, SC Connector, Transmitting Distance: 2Km |
| LNK-LC100-SC-20 | 100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SC Connector, Transmitting Distance: 20Km |
| LNK-LCS100-SC-20 | 100M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF, SC Connector, Transmitting Distance: 20Km |
| LNK-LC100-SFP | 100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, MMF, SFP*1, Transmitting Distance: 2Km |
| LNK-LC100-SFP-20 | 100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SFP*1, Transmitting Distance: 20Km |
| LNK-LCS100-SFP-20 | 100M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF, SFP*1, Transmitting Distance: 20Km |
