Model : LNK-IMC1100P90 series
Overview

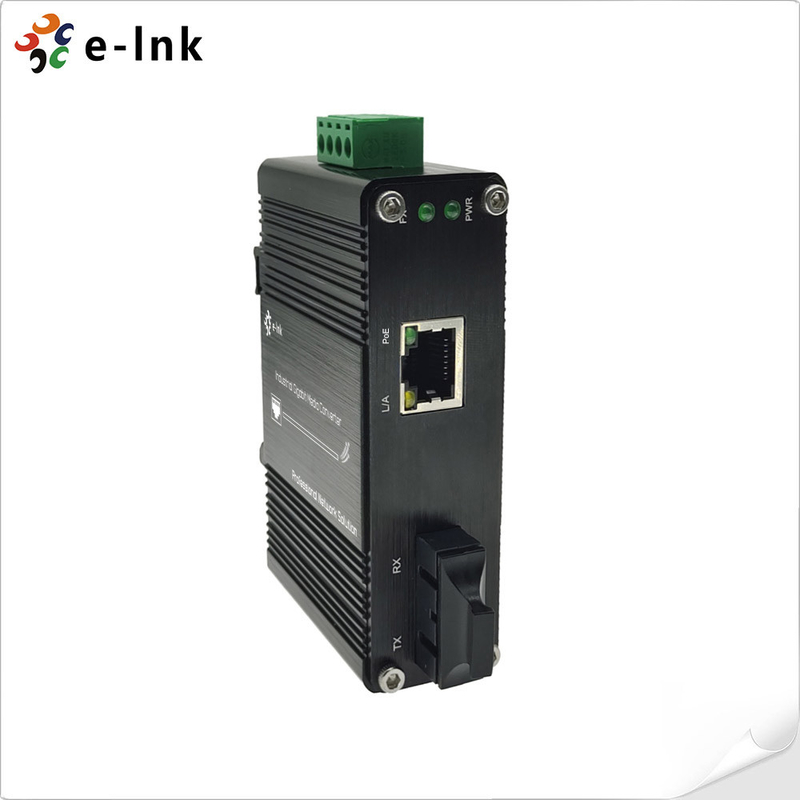

The LNK-IMC1100P90 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber.
The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt
standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized
aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware
design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1100P90
Series are easy to mount on a DIN rail or in distribution boxes.
Features
► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100Base-FX SC
► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 48~57VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3x Full duplex and flow control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| IEEE802.3bt Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 128K bits |
| Max Packet Length: | 1522 Bytes |
| Address Table Size | 1K MAC Addresses |
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SC 100Base-FX |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, 4-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 95W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
|
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Application
Ordering Information
| Model | Description |
| LNK-IMC1100P90 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1100P90-20 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1100P90S-20 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
