Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: LNK-TCU1000
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: Fiber Optic Accessories Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Casing: |
Aluminum Case |
Operating Temperature: |
0°C ~ 60°C |
USB: |
1 X USB-C 3.0 |
RJ45: |
1 X RJ-45 10/100/1000Mbps LAN Port |
Dimensions (LxWxH: |
78 X 27 X 18 Mm |
Casing: |
Aluminum Case |
Operating Temperature: |
0°C ~ 60°C |
USB: |
1 X USB-C 3.0 |
RJ45: |
1 X RJ-45 10/100/1000Mbps LAN Port |
Dimensions (LxWxH: |
78 X 27 X 18 Mm |

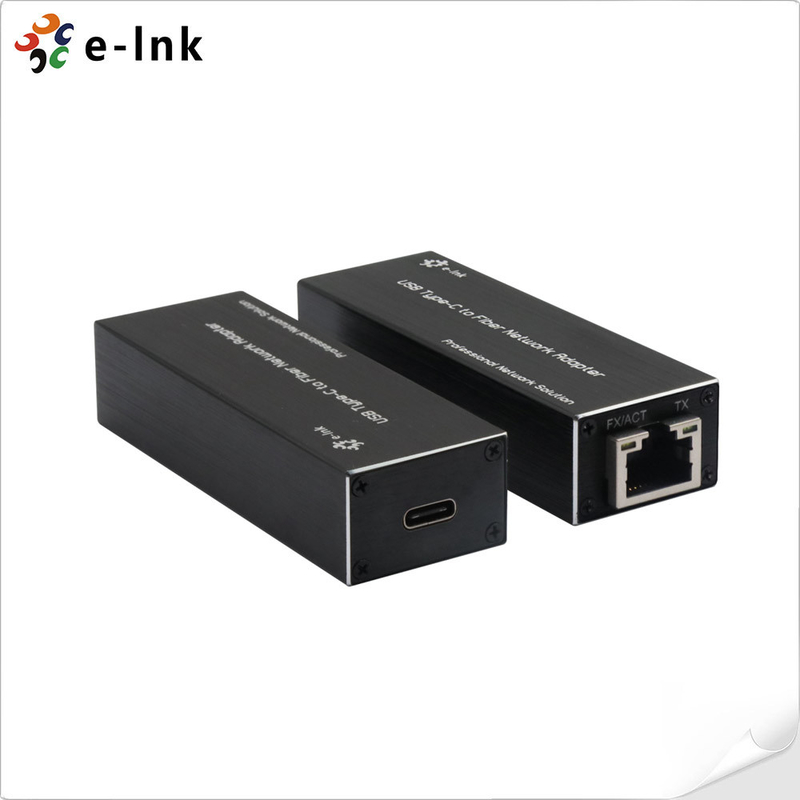

Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter
Fiber Optic Accessories Advantages:
► 1 x 10/100/1000Mbps RJ45 Slot + 1 x TYPE-C USB3.0 Slot
► Supports Gigabit networking over USB 3.0
► IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
► Powered directly from the USB ports
► Crossover Detection & Auto-Correction (Auto MDIX)
► IEEE 802.1Q VLAN Tagging support
► Jumbo Frame support
► Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload
► Activity and Link LED indicators
► Compact, lightweight design for maximum portability
E-link LNK-TCU1000 Series USB-C Network Interface Card designed for Laptop/PC/Tablet that with
Type-C interface and need to access Fast and Stable internet through UTP Cable. With this USB-C LAN
Card, Network Connection is more stable and quicker than Wifi access. It can offer 1000Mbps Internet
access, It provides up to 2000Mbps full-duplex bandwidth capacity. In addition, with advanced functions
like VLAN filtering packet processing, the adapter provides added performance, flexible configuration
and secure networking for users in a standard-based environment.
Application
Technical Indexs
| Specifications | |
| Standards: | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.1q VLAN tagging | |
| Chipset ID: | Realtek RTL8153B |
| Network Transfer Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Jumbo Frame Support: | 9K max. |
| Other: | Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload |
| Software | |
| OS Compatibility: |
Windows® XP, Vista, 7, 8, 8.1, 10, 11 Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 MacOS 10.8 to 10.15, VLAN tagging is currently not supported in macOS Linux Kernel up to 5.17 UEFI UNDI |
| Interface | |
| USB: | 1 x USB-C 3.0 |
| RJ45: | 1 x RJ-45 10/100/1000Mbps LAN port |
| Electrical and Mechanical | |
| Power: | USB Bus Powered |
| Power Consumption: | 5W Max. |
| LED Indicators: | |
| L/A: | Link/Activity |
| Dimensions (LxWxH): | 78 x 27 x 18 mm |
| Weight: | 46g |
| Casing: | Aluminum Case |
| Mounting Options: | Desktop |
| Environmental | |
| Operating Temperature: | 0°C ~ 60°C (32° ~ 140°F) |
| Storage Temperature: | -10° ~ 70°C (14° ~ 158°F) |
| Relative Humidity: | 5% to 90% non-condensing |
| MTBF | > 100,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
Orrdering Information
| Model | Description |
| LNK-TCU1000 | Micro Mini USB 3.0 to Gigabit Ethernet NIC Network Adapter |
| Mounting Options | ► Desktop |
| Power Options | ► No need for an external power adapter (bus powered) |
| Package Contents | ► USB 3.0 Gigabit Ethernet Adapter x 1 |
| ► Quick installation guide x 1 |
