Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-IMC005G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Ethernet Switch Standard Export Package
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini Industrial PoE Switch |
Input Power: |
12~48VDC |
Mounting Options: |
DIN-Rail / Wall-mount |
Casing: |
Aluminum Case |
Weight: |
0.25Kg |
Dimensions: |
95 X 70x 29m |
Key Word: |
Mini Industrial PoE Switch |
Input Power: |
12~48VDC |
Mounting Options: |
DIN-Rail / Wall-mount |
Casing: |
Aluminum Case |
Weight: |
0.25Kg |
Dimensions: |
95 X 70x 29m |
Mini Industrial PoE Ethernet Switch Advantages
► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► PoE Optional
Technical Indexes
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W (PoE In Use: <125W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
Overview

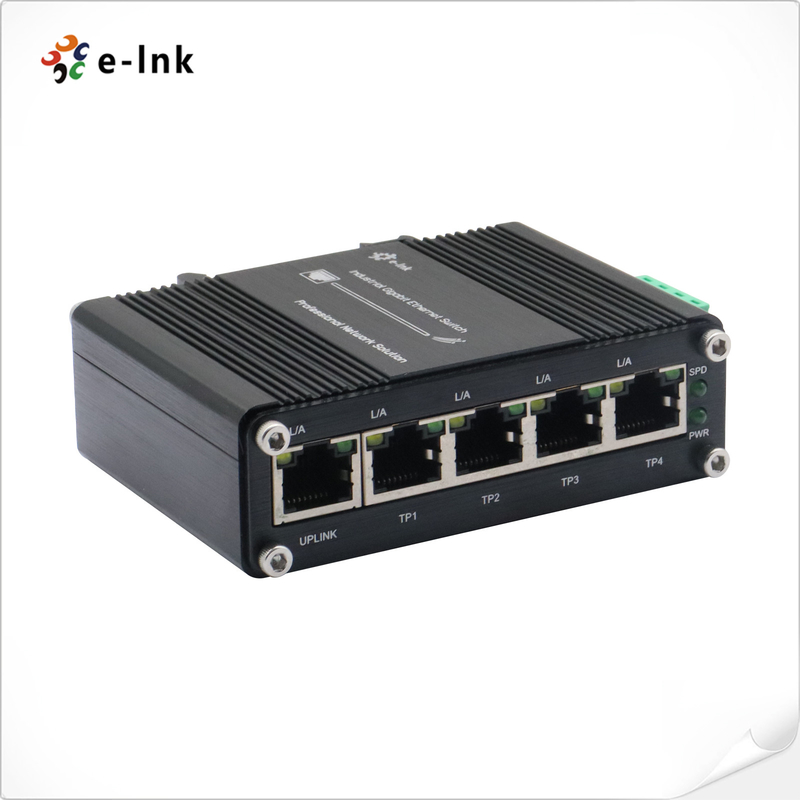

LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input.
This unmanaged industrial Ethernet switch is designed to match the critical industrial standards.
Ordering Information
| Model | Description |
| LNK-IMC005G | Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
| LNK-IMC005GP | Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
