Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: LNK-POE-2P
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiate
Packaging Details: Fiber Optic Accessories Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Case Of Materiall: |
PVC |
Network Cable: |
T IA/EIA 568 Cat. 5 |
Ethernet Data Rate: |
10/100 Mbps |
Operating Temperature: |
0°C - 40°C (32°F - 104°F) |
Dimensions (WxDxH): |
210 X 19 X 19 Mm |
Weight: |
55g |
Case Of Materiall: |
PVC |
Network Cable: |
T IA/EIA 568 Cat. 5 |
Ethernet Data Rate: |
10/100 Mbps |
Operating Temperature: |
0°C - 40°C (32°F - 104°F) |
Dimensions (WxDxH): |
210 X 19 X 19 Mm |
Weight: |
55g |

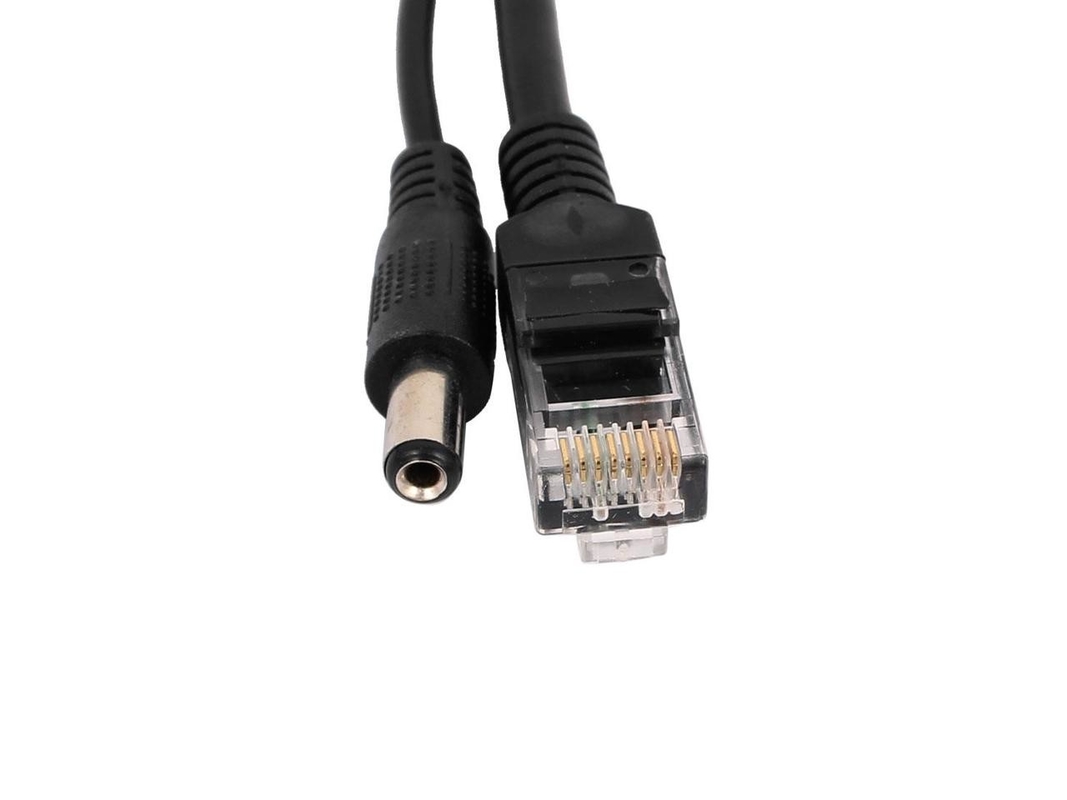

Passive PoE Kit ( Passive PoE Splitter + Passive PoE Injector )
Fiber Optic Accessories Advantages:
► Passive PoE Splitter + Passive PoE Injector
► Easy to install PoE Application for AP, CPE, IPCam, IP Phone
► Use the Power Supply from Powered Device
►Accept up to 57V Voltage Inpu
Overview
LNK-POE-2P is a passive Power over Ethernet kit, including one passive splitter and one passive
injector. It provides the most convenient and cost effective way for you to make PoE application,
you do not worry about how to find power outlet when using AP or IPCam. It uses the power adapter
that comes with your network device. There is no need for special PoE power adapter.
Application
Technical Indexes
| Interface | Data pin: 1,2,3,6 |
| Power pin: 4, 5, 7, 8 (12~57V) | |
| Case of material | PVC |
| Network cable | T IA/EIA 568 Cat. 5 |
| Ethernet data rate | 10/100 Mbps |
| Ethernet cable connector | RJ-45 |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -40°C - 70°C (-40°F - 158°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
| Product Weight (g) | 55g |
| Dimensions | 210 x 19 x 19 mm |
| ( L x W x H (mm) ) |
| Item | Description |
| LNK-POE-2P | Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector |
