Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: LNK-1100USB Series
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: Fiber Media Converter Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Connector: |
1x RJ45 |
USB Port: |
USB1.0, 1.1 And 2.0 |
Wavelength: |
1310nm/1550nm |
Optical Port: |
1 X SC 100Base-FX |
Dimensions (WxDxH): |
71 X 94 X 26 Mm |
Weight: |
0.2Kg |
Connector: |
1x RJ45 |
USB Port: |
USB1.0, 1.1 And 2.0 |
Wavelength: |
1310nm/1550nm |
Optical Port: |
1 X SC 100Base-FX |
Dimensions (WxDxH): |
71 X 94 X 26 Mm |
Weight: |
0.2Kg |
USB Powered 10/100Base-TX to 100Base-FX Ethernet Media Converter
Fiber Media Converter Advantages:
· USB power via optional Power Adapter Cable or external AC to DC power adapter
· Plug-and-Play capability
· Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex
· Supports MDI/MDIX auto-crossover
· LFP (Link Fault Pass-through) function optional: When optical fiber or UTP is failing, the converter
could stop all links, in addition to power light, other LED lights put out.)
· SC, ST FC Connector or SFP Port available (SC default), single mode / multi mode, single fiber/dual
fiber
· Converter working mode could be chosen from: Store and forward switch mode, Modified cut-through
switch mode, or Converter mode.
· Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by t
hunderbolt induction.
· Standalone or install in the 14-slot Powered Chassis
Overview
LNK-1100USB series Fiber Media Converters is a 10/100M Ethernet Media Converter. It can convert
Optical－Electric 10M/100M Ethernet signals between UTP interface (TX) and optical fiber interface (FX).
It can extend traditional 10/100M fast Ethernet to the distance of 120km through optical fiber link.

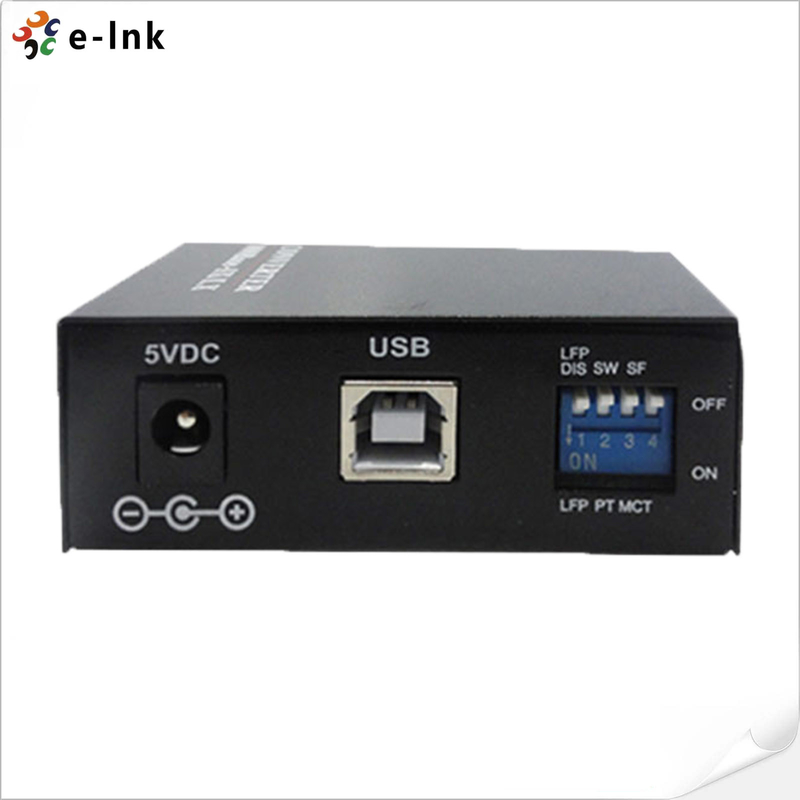

The LNK-1100USB series Fiber Media Converters can be powered by a USB port (1.0, 1.1, and 2.0) or
external AC to DC power adapter. A USB Power Adaptor Cable is available, which reduces the module’s
weight and eliminates the need to tether the media converter to an electrical outlet.
The DIP Switch on the side panel is used to set working configurations for meeting the need of various
applications. LFP (Link Fault Pass-through) function for easily tracking the network link failure. It can
enhance the integrity and conformity of the TP-Fiber linking to improve the maintainability of the network.
Six LEDs indicated lights could fully monitor the working conditions of Converters. It is easy for end-users
to observe network operation and to judge its failure. LNK-1100USB series external power supply
Converters could be used alone, or inserted to 14 slots Converters Rack supplied.
Technical Indexs
| Ethernet | ||
| Standards: | IEEE802.3 10Base-T/IEEE802.3u 100Base-TX | |
| IEEE802.3u 100Base-TX/FX | ||
| IEEE802.3x Flow Control | ||
| Processing Type: | Store-and-Forward | |
| Half-duplex, Full-duplex | ||
| Forward Filter Rate:: | 14,880pps (10Mbps) 148,800pps (100Mbps) | |
| Cabling: | 10/100Base-TX: Cat5 or above | |
| Maximum Distance: | Cat5 UTP up to 100m | |
| Connector: | 1x RJ45 | |
| Address Table Size: | 1024MAC Addresses | |
| USB | ||
| USB Port | USB1.0, 1.1 and 2.0 | |
| Optical | ||
| Cabling: | 62.5/125μm (multi mode); 9/125μm (Single mode) | |
| Maximum Distance: | 2km (Multi mode); 20/40/80/120km (Single mode) | |
| Wavelength: | 1310nm/1550nm | |
| Optical Port: | 1 x SC 100Base-FX | |
| Environmental | ||
| Operating Temperature: | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature: | -40°C to 80°C (-40°F to 176°F) | |
| Relative Humidity: | 5% to 95% non-condensing | |
| MTBF: | > 100,000 hrs | |
| DIP Switch | ||
| 1 | TP port mode | Auto (default) or Force |
| 2 | TP port speed | 100 or 10 when TP at Force |
| 3 | TP port duplex | FDX or HDX when TP at Force |
| 4 | LFP | LFP enabled (default) or disabled |
| 5 | Fiber port duplex | 100 FDX (default) or 100 HDX |
| Electrical and Mechanical | ||
| AC Power Requirements: | US AC Adapter | 100 - 120VAC/60Hz |
| Universal AC Adapter | 100 - 240VAC/50 - 60Hz | |
| DC Power Requirements: | DC Input: | 5.0 to 15.0VDC |
| LED Indicators | ||
| Power: | Power Status | |
| 10/100TX (Per Port): | Link/Activity, Speed, FDX | |
| 100FX (Per Port): | Link/Activity, SD | |
| Dimensions (WxDxH): | 71 x 94 x 26 mm | |
| Weight: | 0.2Kg | |
| Casing: | Metal Case | |
| Mounting Options: | Desktop/ LNK-R14 2U Rack | |
| Regulatory Approvals | ||
| ISO9001, CE, FCC, RoHS | ||
| FCC part 15,Class A | ||
Orrdering Information
| Model | Description |
| LNK-1100USB | USB Powered 10/100Base-TX to 100Base-FX SFP Ethernet Media Converter |
| Fiber Options: | ►Multi mode/2-fiber/SC; |
| Mounting Options: | ► Desktop Bracket; ► Rack-mountable on 2U rack LNK-R14 (Purchase Separately). |
| Power Options: | ►1A/5VDC Power Adapter with DC Jack. ► Power Adaptor is included for all sales. |
