Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-IMC103GP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Mini PoE Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini Industrial PoE Switch |
Mounting Options: |
DIN-Rail / Wall-mount |
Input Power: |
12~48VDC |
Power Pin: |
4/5(+), 7/8(-) |
Weight: |
0.3Kg |
Dimensions: |
95 X 70x 30m |
Key Word: |
Mini Industrial PoE Switch |
Mounting Options: |
DIN-Rail / Wall-mount |
Input Power: |
12~48VDC |
Power Pin: |
4/5(+), 7/8(-) |
Weight: |
0.3Kg |
Dimensions: |
95 X 70x 30m |

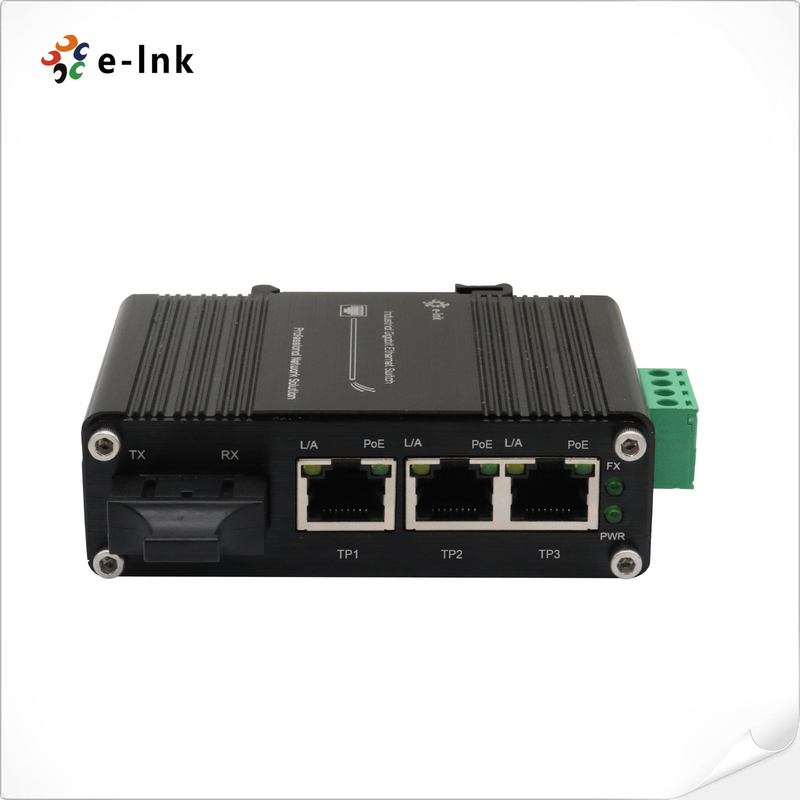

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Ethernet Switch
Mini Industrial PoE Ethernet Switch Advantages
► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)
► 1 1000Base-X SC Port
► 12~48VDC wide range power input with power booster function
► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)
► Supports Full/Half-duplex, Auto-negotiation
Technical Indexes
| Interface | |
| Connector: | 3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3) |
| Optical Port: | 1 x SC 1000Base-X |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet | |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
Overview
LNK-IMC103GP Series is a Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC
Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards.
Ordering Information
| Model | Description |
| LNK-IMC103GP | Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m |
| LNK-IMC103GP-20 | Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km |
| LNK-IMC103GPS-20A | Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km |
| LNK-IMC103GPS-20B | Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 12~48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
