Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: LNK-IMC008GP
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Connector: |
8 X RJ45 |
Casing: |
Aluminum Case |
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Dimensions (WxDxH): |
150 X 115 X 50 Mm |
Weight: |
0.6Kg |
Connector: |
8 X RJ45 |
Casing: |
Aluminum Case |
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Dimensions (WxDxH): |
150 X 115 X 50 Mm |
Weight: |
0.6Kg |

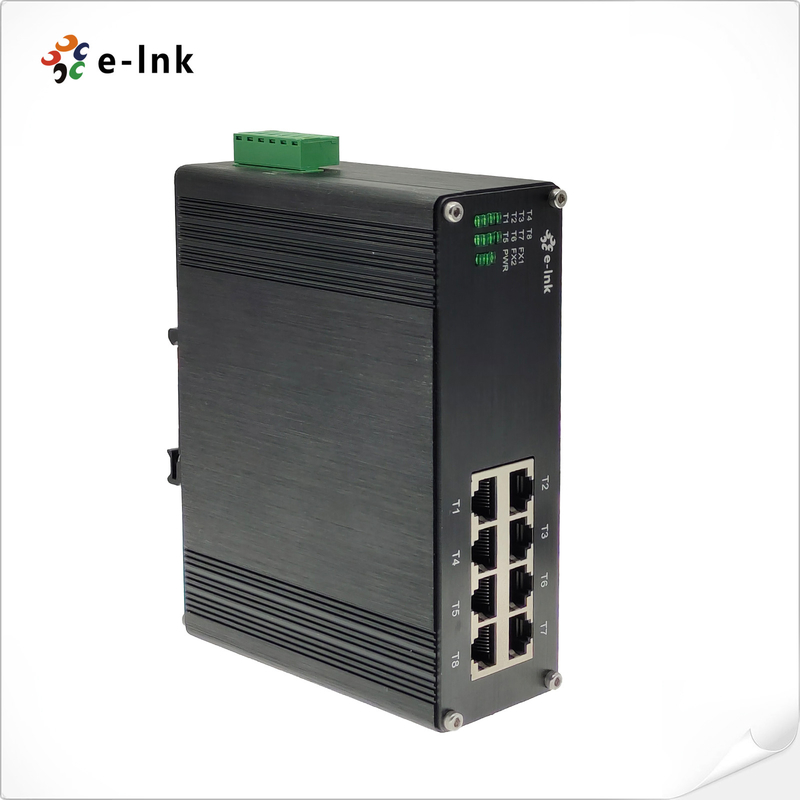

Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch
Industrial PoE Switch Advantage
► 8x10/100/1000Base-TX with PoE+
► Support IEEE802.3at PoE(30W per port)
► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports 16K MAC address
► 2M bits frame buffer memory
► Supports DIN-Rail and Wall-mount installation
► Redundant Power Inputs
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexs
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 4 x 1000Base-X SFP |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet | |
| Port: | 8 x RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max. (PoE in Use<240W) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| PWR | Power Status |
| Ethernet (Per Port) | Link/Activity |
| PoE | PoE Status |
| Fiber: | Gigabit SFP Port: F9~F12 |
| Dimensions (WxDxH): | 149 x 114 x 50 mm |
| Weight: | 0.55Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Regulatory Approvals | |
| ISO9001, CE, RoHS, FCC | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Orrdering Information
| Model | Description |
| LNK-IMC008GP | Industrial 8-port 10/100/1000BASE-T (8-port PoE+) Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
