Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-IMC1100P60
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini Industrial PoE Media Converter |
Input Power: |
12~48VDC |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 75°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
Mini Industrial PoE Media Converter |
Input Power: |
12~48VDC |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 75°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Mini Industrial PoE Media Converter Advantages
► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100Base-FX SC
► IEEE802.3af/at compliant
► Up to 60W of power over 4-pairs
► Supports Full/Half-duplex, Auto-negotiation
Technical Indexes
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SC 100Base-FX |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 65W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |
| Casing: | Aluminum Case |
Overview

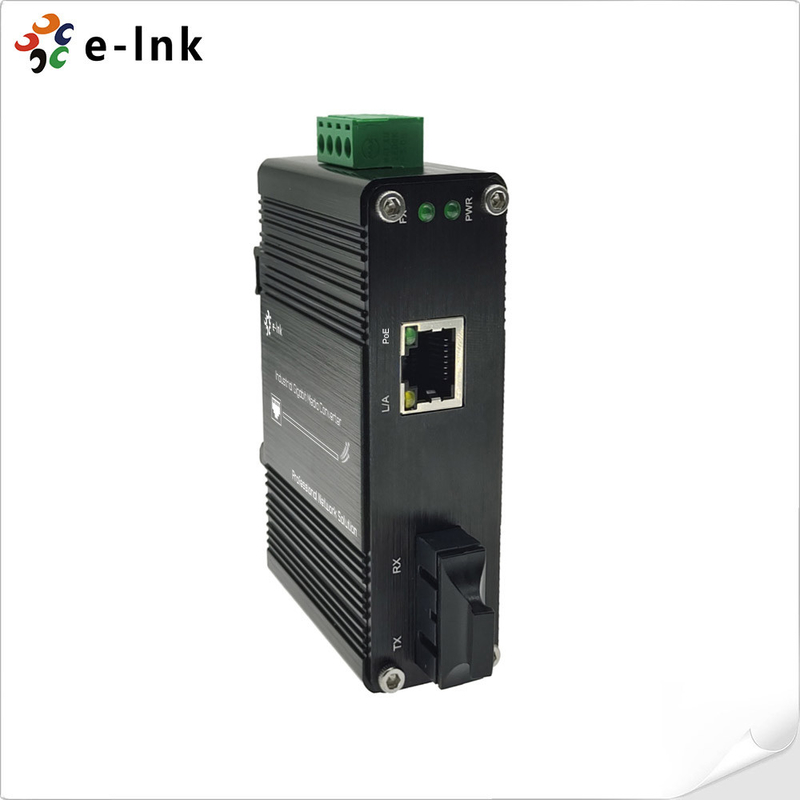

The LNK-IMC1100P60 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. The Ethernet port
support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product
with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both
half-duplex and full-duplex mode.
Ordering Information
| Model | Description |
| LNK-IMC1100P60 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1100P60-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1100P60S-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
