Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-IMC3011P60
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini Industrial PoE Media Converter |
Input Power: |
12~48VDC |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 75°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
Mini Industrial PoE Media Converter |
Input Power: |
12~48VDC |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 75°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Mini Industrial PoE Media Converter Advantages
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 1000Base-X SC
► IEEE802.3af/at compliant
► Up to 60W of power over 4-pairs
► Supports Full/Half-duplex, Auto-negotiation
Technical Indexes
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x 1000Base-X SC |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 4-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 65W Max. |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
Overview

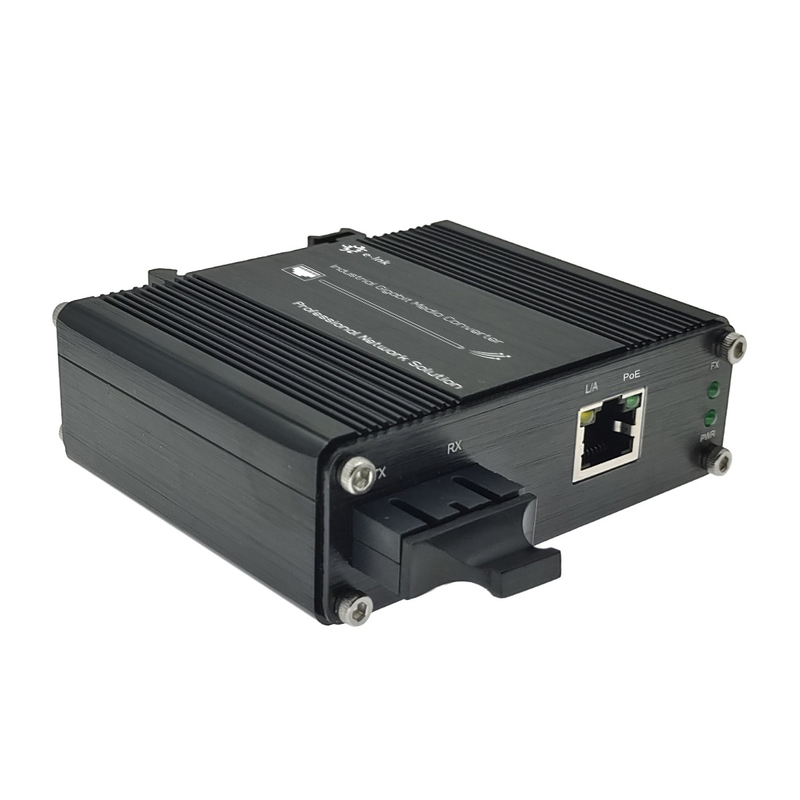

The LNK-IMC3011P60 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet
port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened
product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing.
Ordering Information
| Model | Description |
| LNK-IMC3011P60 | Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m |
| LNK-IMC3011P60-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC3011P60S-20 | Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
