Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-IMC1100P90
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini Industrial PoE Media Converter |
Operating Temperature: |
-40°C To 75°C |
Connector: |
1x RJ45 |
Optical Port: |
1 X SC 100Base-FX |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
Mini Industrial PoE Media Converter |
Operating Temperature: |
-40°C To 75°C |
Connector: |
1x RJ45 |
Optical Port: |
1 X SC 100Base-FX |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Mounting Options: |
DIN-Rail / Wall-mount |
Mini Industrial PoE Media Converter Advantages
► 1-Port 10/100BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100Base-FX SC
► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
Technical Indexes
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, 4-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 95W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
Overview

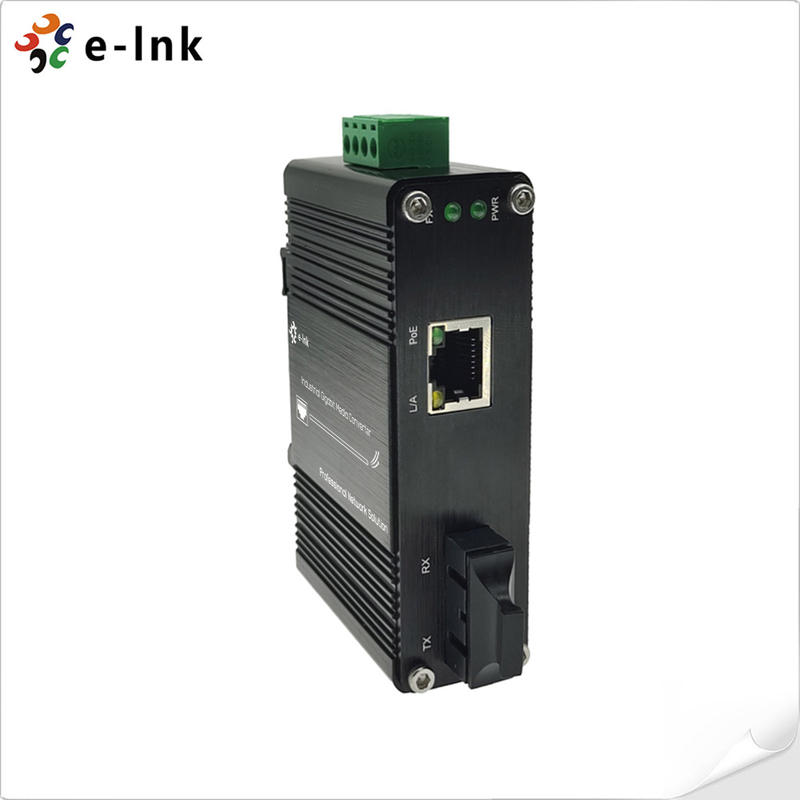

The LNK-IMC1100P90 Series provides media conversion between 10/100BASE-T and 100BASE-FX Fiber. The Ethernet port
support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard.
Ordering Information
| Model | Description |
| LNK-IMC1100P90 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1100P90-20 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1100P90S-20 | Mini Industrial 90W PoE Media Converter, 1-port 100BASE SC + 1-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
