Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-IMC3012
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini Industrial Media Converter |
Operating Temperature: |
-40°C To 75°C |
Connector: |
1x RJ45 |
Optical Port: |
1 X SC 1000Base-X |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
Mini Industrial Media Converter |
Operating Temperature: |
-40°C To 75°C |
Connector: |
1x RJ45 |
Optical Port: |
1 X SC 1000Base-X |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Mounting Options: |
DIN-Rail / Wall-mount |
Mini Industrial Media Converter Advantages
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SC Port, 1000Base-X
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Extensive LED indicators for network diagnostics
Technical Indexes
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SC 1000Base-X |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 4-pin terminal block |
| Power Consumption: | 3W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| SPD: | Ethernet Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
Overview

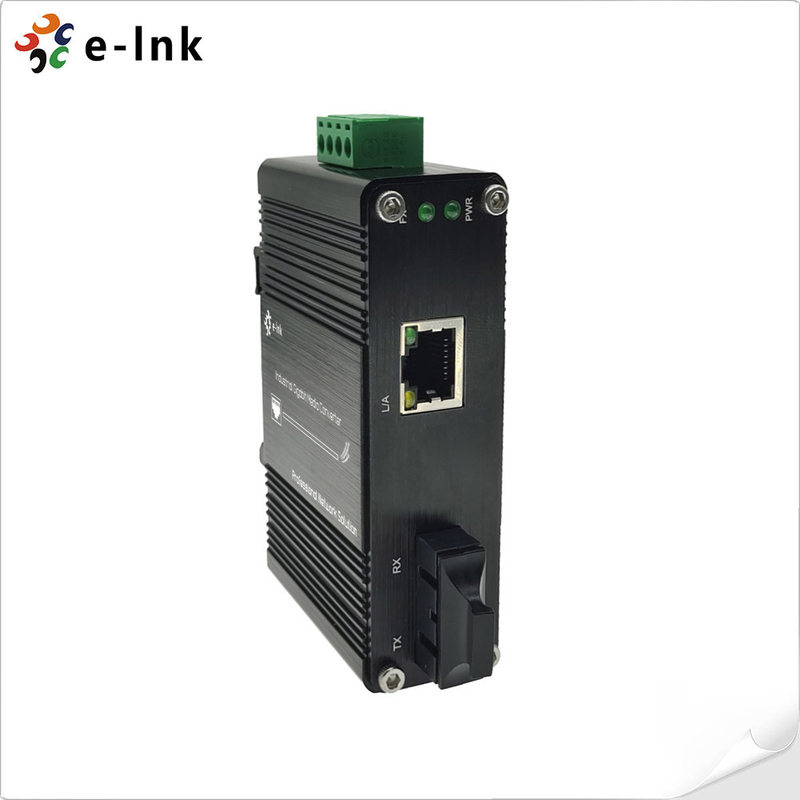

The LNK-IMC3012 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. It’s a hardened
product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port
supports both half-duplex and full-duplex mode.
Ordering Information
| Model | Description |
| LNK-IMC3012 | Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-SX, Multi-mode, 550m, 850nm, SC |
| LNK-IMC3012-20 | Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-LX, Single-mode, 20km, 1310nm, SC |
| LNK-IMC3012-S20 | Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
