Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: LNK-DVI-1D1BA
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiate
Packaging Details: DVI Fiber Converter Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100000pair/Month
Video: |
Female DVI-D |
Audio: |
3.5MM External Stereo Audio |
Fiber Type: |
Single-mode Single Fiber |
Operating Temperature: |
-20℃ ~ +70℃ |
Power Supply: |
DC 12V/1A |
Dimension (LxWxH): |
120 X 83 X 28 (mm) |
Video: |
Female DVI-D |
Audio: |
3.5MM External Stereo Audio |
Fiber Type: |
Single-mode Single Fiber |
Operating Temperature: |
-20℃ ~ +70℃ |
Power Supply: |
DC 12V/1A |
Dimension (LxWxH): |
120 X 83 X 28 (mm) |

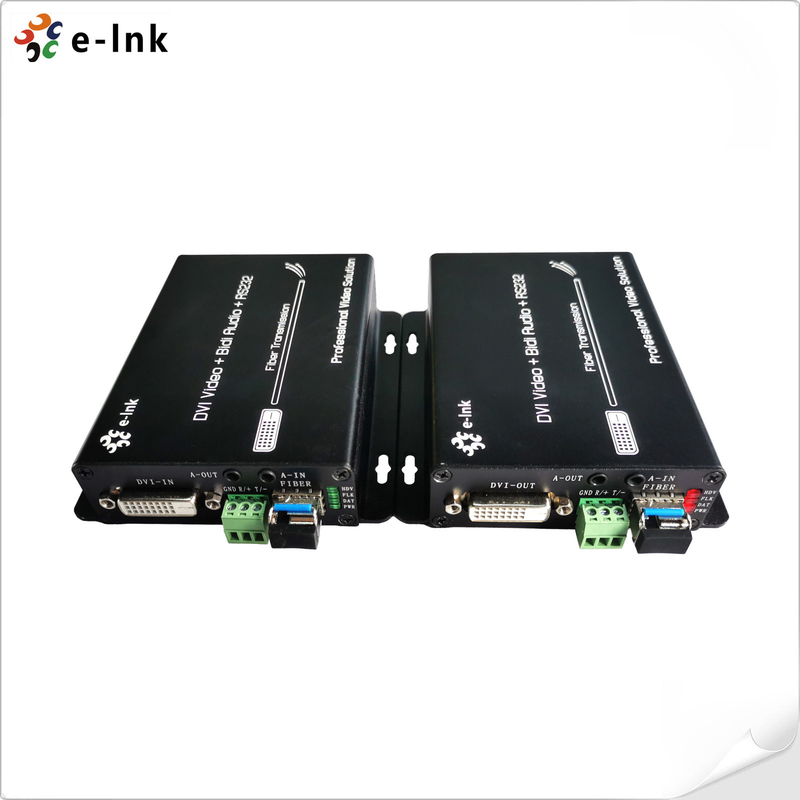

DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender
DVI Fiber Converter Advantages:
► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview
The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over
one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external
audio transmission function. The extender can use for a wide range of applications requiring
long-distance transmission of high resolution with high quality by its good stability and powerful security.
Application
Technical Indexes
| Parameter | Description | |
|
Video
|
Standards | DVI 1.0 and HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 2.97Gbps | |
| Compliant |
1080P@50/59.95/60Hz( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 1600*1200 @60HZ |
|
| Connector | Female DVI-D | |
| Impedance | 100Ω | |
| DVI Cable Range | <5Meter (Resolution up to 1920*1200@60Hz) | |
| Audio | Interface | 3.5MM external stereo audio |
| Transmitter | 1Ch Input + 1Ch Output | |
| Receiver | 1Ch Input + 1Ch Output | |
| RS232 | Interface | 3-Pin Terminal Block |
| Baud Rate | ≤115200 | |
| Data Bits | 8 bits | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | 850nm/1310nm/1550nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance |
Multi-mode fiber: <500M Single-mode fiber: 0~80km |
|
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 4W | |
| Temperature | Operating: -20℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 120 x 83 x 28 (mm) | |
