Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-IMC1200
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini Industrial Media Converter |
Input Power: |
12~48VDC |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 75°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
Mini Industrial Media Converter |
Input Power: |
12~48VDC |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 75°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Mini Industrial Media Converter Advantages
► 2-Port 10/100BASE-T RJ45 with auto MDI/MDI-X function
► 1-Port 100Base-FX SC
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
Technical Indexes
| Interface | |
| Connector: | 2 x RJ45 |
| Optical Port: | 1 x SC 100Base-FX |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
Overview

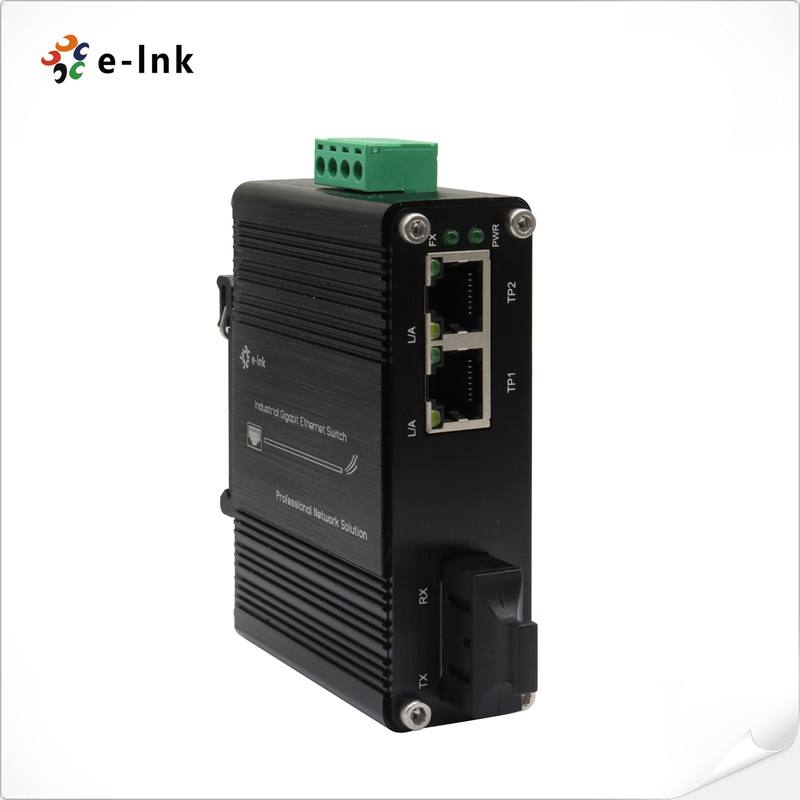

The LNK-IMC1200 Series provides media conversion between 2-Port 10/100BASE-T and 1-Port 100BASE-FX Fiber. It’s a
hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing.
Ordering Information
| Model | Description |
| LNK-IMC1200 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC1200-20 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC1200-S20 | Mini Industrial Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
