Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-INJ302
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Power Pin: |
4/5(+), 7/8(-) |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 80°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Power Pin: |
4/5(+), 7/8(-) |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 80°C |
Mounting Options: |
DIN-Rail / Wall-mount |
PoE Injector Adapter Advantages
► 12~48VDC Power Input
► 2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Max 60W PoE at one port, total POE power less than 60W
► Support 10/100/1000Base-TX
Technical Indexes
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 70W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 60W Max (Alternative B Mode) |
Overview

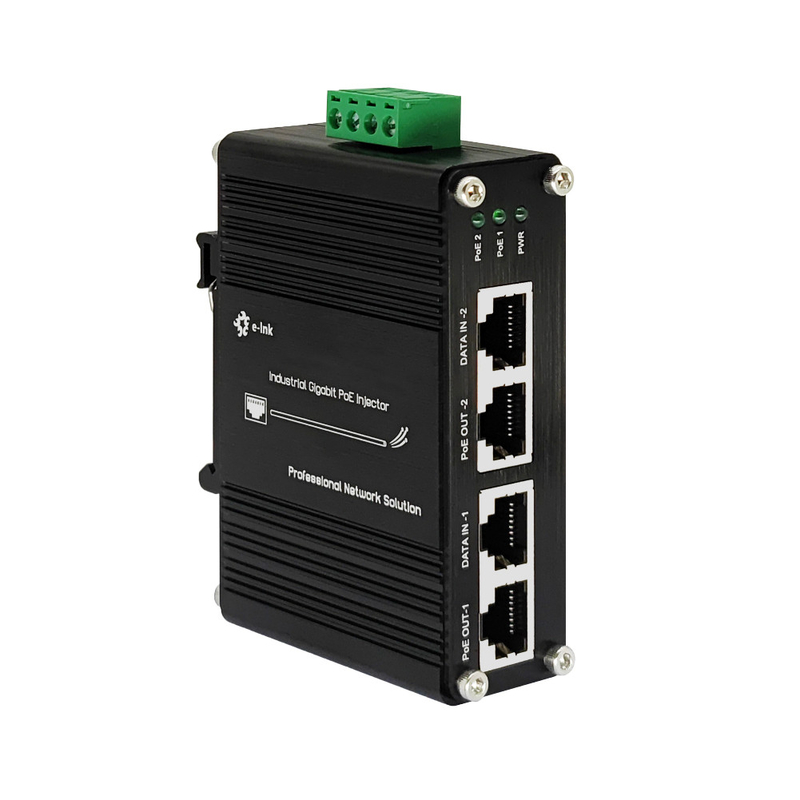

The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at
PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Ordering Information
| Model | Description |
| LNK-INJ302 | 12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
