Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-INJ301-60
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Power Pin: |
4/5(+), 7/8(-) |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 80°C |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Power Pin: |
4/5(+), 7/8(-) |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Operating Temperature: |
-40°C To 80°C |
Mounting Options: |
DIN-Rail / Wall-mount |
PoE Injector Adapter Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet Power Sourcing Equipment
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
Technical Indexes
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 65W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 60W Max per port (Alternative B Mode) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Casing: | Aluminum Case |
Overview

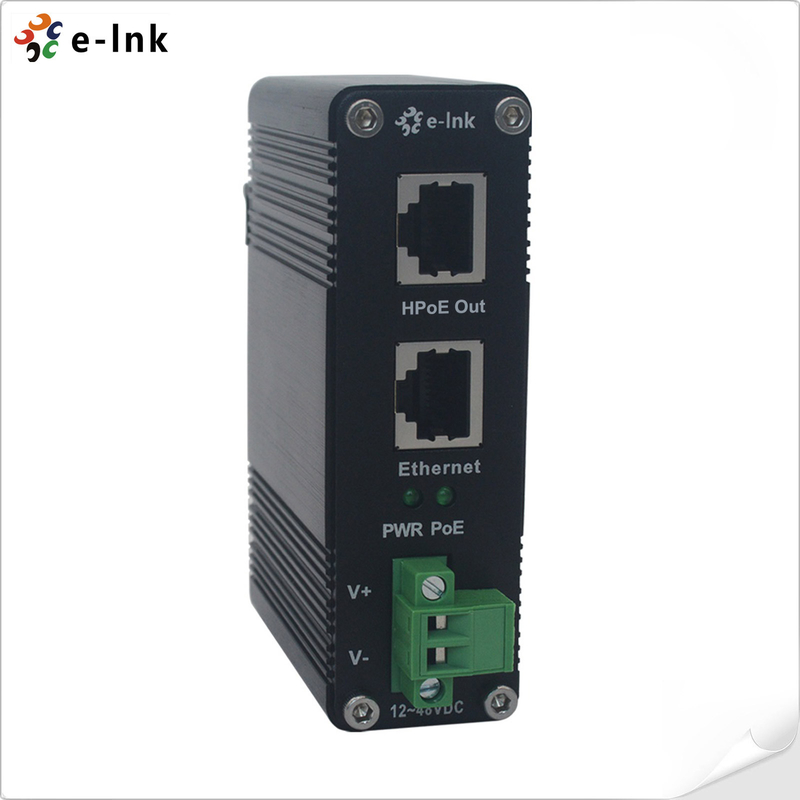

The LNK-INJ301-60 product is a Hardened Gigabit 60W PoE Injector allows you to connect the IEEE 802.3 af/at PoE device
such as camera and access point with a non PoE LAN switch within the distance of 100m.
Ordering Information
| Model | Description |
| LNK-INJ301-60 | 12~48VDC Power Input Industrial Gigabit 60W PoE Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
