Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-INJ401-90
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Power Pin: |
4/5(+), 7/8(-) |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Power Pin: |
4/5(+), 7/8(-) |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Mounting Options: |
DIN-Rail / Wall-mount |
PoE Injector Adapter Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000/2.5G Base-TX
► Extensive LED indicators for PoE diagnostics
Technical Indexes
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 100W Max. |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | IP40 Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Overview

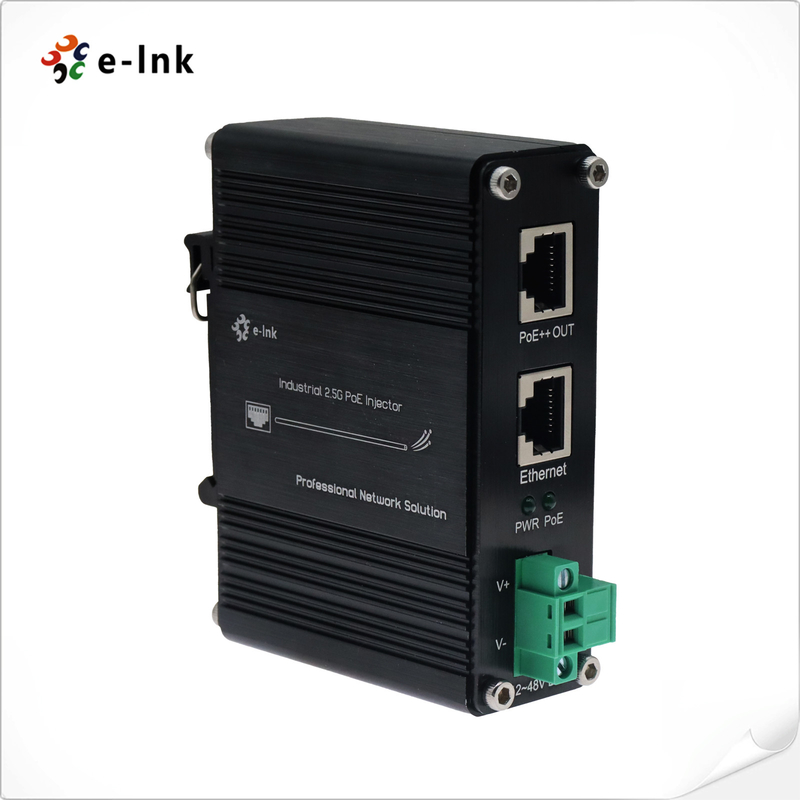

The LNK-INJ401-90 product is an Industrial hardened 2.5G single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000/2.5G
Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and
access point with a non PoE LAN switch within the distance of 100m.
Ordering Information
| Model | Description |
| LNK-INJ401-90 | 2.5G Hardened 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC power input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
