Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-INJ501-30
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Power Pin: |
4/5(+), 7/8(-) |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Mounting Options: |
DIN-Rail / Wall-mount |
Key Word: |
PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Power Pin: |
4/5(+), 7/8(-) |
Dimensions (WxDxH）: |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Mounting Options: |
DIN-Rail / Wall-mount |
PoE Injector Adapter Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000/2.5G/5G Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 7,440,000pps (5Gbps) |
| Cabling: | 10/100/1000/2.5G/5G Base-T: Cat7 or above |
| Maximum Distance: | Cat7 UTP up to 30m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
Overview
Ordering Information
| Model | Description |

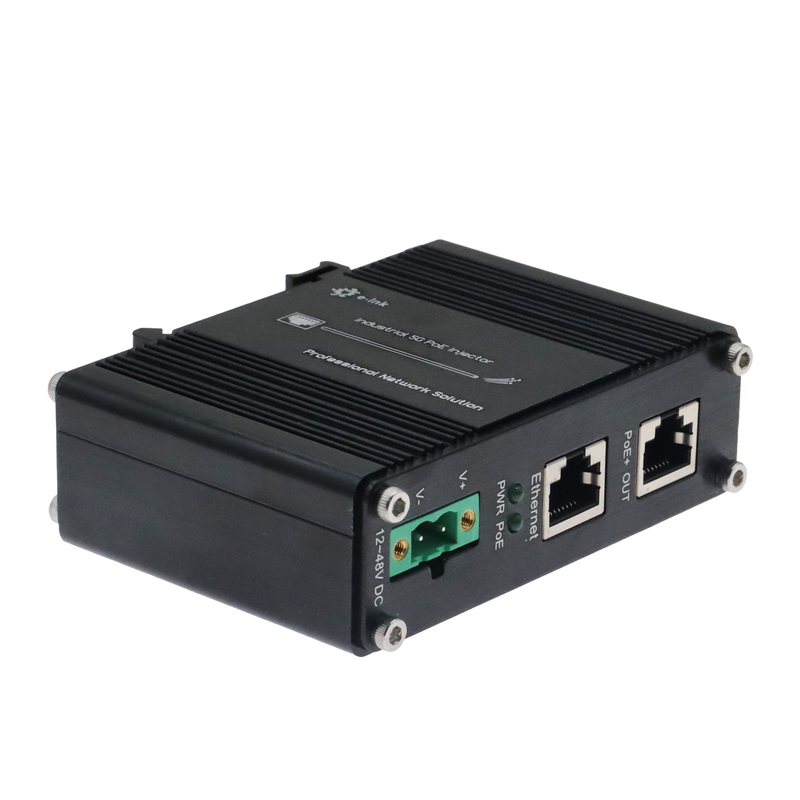

| LNK-INJ501-30 | 12~48VDC Power Input Industrial 5G PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
