Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: E-link Mini-type 10G (8.5G~11.7G) OEO Converter
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: Fiber Media Converter Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Transmission Speed: |
8.5Gb/s-11.7Gb/s |
Interface Type: |
SFP+ To SFP+ |
Power Supply: |
DC 5~12V |
Operation Temperature: |
0~ 50 ℃ |
Dimensions (WxDxH): |
58 (W) X 20 (H) X 90 (L) (mm) |
Relative Humidity: |
5%~90% （ Non-condensing ） |
Transmission Speed: |
8.5Gb/s-11.7Gb/s |
Interface Type: |
SFP+ To SFP+ |
Power Supply: |
DC 5~12V |
Operation Temperature: |
0~ 50 ℃ |
Dimensions (WxDxH): |
58 (W) X 20 (H) X 90 (L) (mm) |
Relative Humidity: |
5%~90% （ Non-condensing ） |

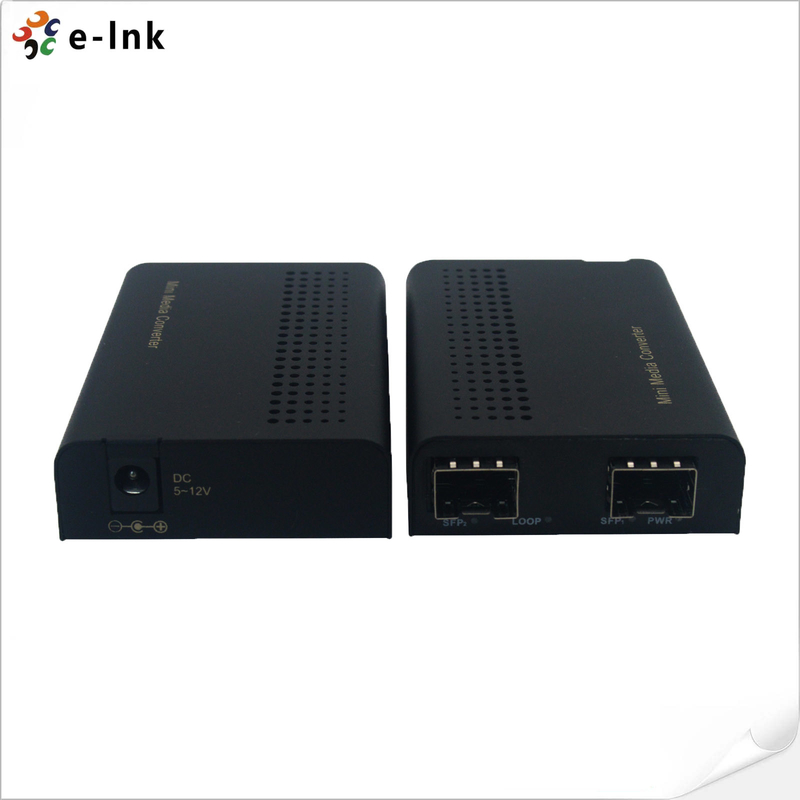

Mini 10G OEO Media Converter (3R Repeater Regeneration, Reshaping, Retiming)
Fiber Media Converter Advantages:
► Support Loop back
► Support Jumbo Frame
► Transparent Transport and very low delay
► Support ITUT prescribed DWDM/CWDM wavelength,and can also display it's DDM function.
► 3R function (Regeneration, Reshaping, Retiming)
► Support hot plugging
► Support 1U Rack (12 channel) and standalone use
► Full State Led display
► Easy installation
Overview
| Performance Data | Technical Indexes |
| Equipment function | 3R Repeater |
| Transmission Speed | 8.5Gb/s-11.7Gb/s |
| Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
| InterfacType | SFP+ to SFP+ |
| Transmission Distance | SFP+ module: up to 80km |
|
Maximum Packet Forwarding Rate |
14,880,950/S |
| Power Requirement |
Rack-mountable : AC 85 ～ 220V Standalone: DC 5~12V Power consumption: ≤4W |
| Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
| Dimension | Standalone :58 (W) x 20 (H) x 90 (L) (mm) |
Technical Indexs
| Standards | 1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T 1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R |
| Media Supported |
1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10G Base-T: Cat6a UTP/STP. MAX 50m; |
| Port Type | RJ45, SFP Slot |
| Work Mode |
1000Base-T to 1000Base-X 5Gbase-T to 5GBase-R 10Gbase-T to 10GBase-R |
| Power Supply | 12V DC |
| Power consumption |
MAX 5W |
| Operation Temperature | 0℃ to 55℃ |
| Relative Humidity | 5% to 80% (non-condensation) |
Orrdering Information
| Model | Description |
| LNK-MN-OEO-10GSS | Mini-type 10G OEO Converter (3R Repeater) (SFP+ to SFP+) |
