Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-POE300
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
PoE Injector Adapter |
Operating Temperature: |
-10°C To 50°C (14°F To 122°F) |
Weight: |
0.25Kg |

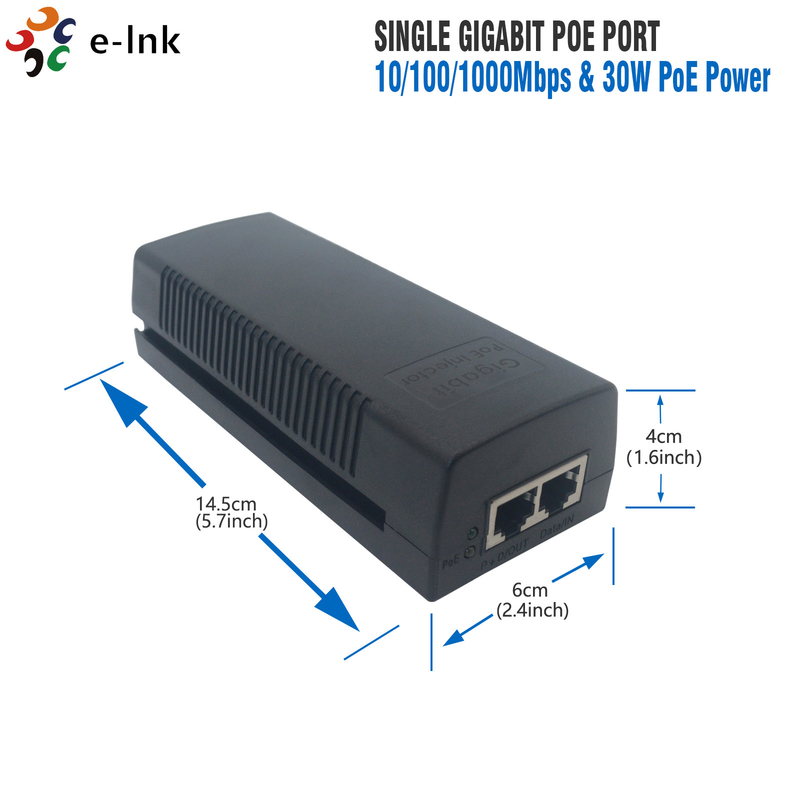

Dimensions (WxDxH）: |
145 X 58 X 39mm |
Mounting Options: |
Desktop |
Casing: |
Plastic Case |
Key Word: |
PoE Injector Adapter |
Operating Temperature: |
-10°C To 50°C (14°F To 122°F) |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
145 X 58 X 39mm |
Mounting Options: |
Desktop |
Casing: |
Plastic Case |
PoE Injector Adapter Advantages
► Compliant with IEEE802.3af Standard
► Support 10/100/1000Base-T
► Compliant with Limited Power Source (LPS)
► High Efficiency > 85%
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
Technical Indexes
| Environmental | |
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature: | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Voltage Range: | 100-240V AC @50/60Hz. |
| Output Voltage: | DC 48V |
| Power Consumption: | 15.4 watts max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3af |
| Port: | RJ45 |
| Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
| PoE Power Output | DC 48V/15.4-watt PoE via 2-pairs |
Overview
LNK-POE300 15.4W-48V Gigabit POE Injector is a long-distance driving, fast network performing, strong PoE Output IEEE802.3af
certified midspan. It is a single port indoor PoE injector that can provide up to 15.4W based on the IEEE 802.3af standard.
Ordering Information
| Model | Description |
| LNK-POE300 | PoE Injector with Power Cord: 10/100/1000Mbps, IEEE 802.3af 15.4W |
