Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-PSE9501G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PoE Injector Adapter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
PoE Injector Adapter |
Operating Temperature: |
-10°C To 50°C (14°F To 122°F) |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
145 X 58 X 39mm |
Mounting Options: |
Desktop |
Casing: |
Plastic Case |
Key Word: |
PoE Injector Adapter |
Operating Temperature: |
-10°C To 50°C (14°F To 122°F) |
Weight: |
0.25Kg |
Dimensions (WxDxH）: |
145 X 58 X 39mm |
Mounting Options: |
Desktop |
Casing: |
Plastic Case |
PoE Injector Adapter Advantages
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non-standard Ethernet Terminals
► Injects 56V DC through a CAT 5 cable, use all 4 pairs into remote devices such as wireless AP and other functions
Technical Indexes
| Electrical and Mechanical | |
| Input Voltage Range: | 100-240V AC @50/60Hz, 1.5A max. |
| Output Voltage: | DC 48-57V, 2A |
| Power Consumption: | 95 watts max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3af |
| IEEE 802.3at | |
| IEEE 802.3bt | |
| Port: | RJ45 |
| Power Pin Assignment | Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
| PoE Power Output | DC 48V-57V/95-watt PoE via 2-pairs |
Overview

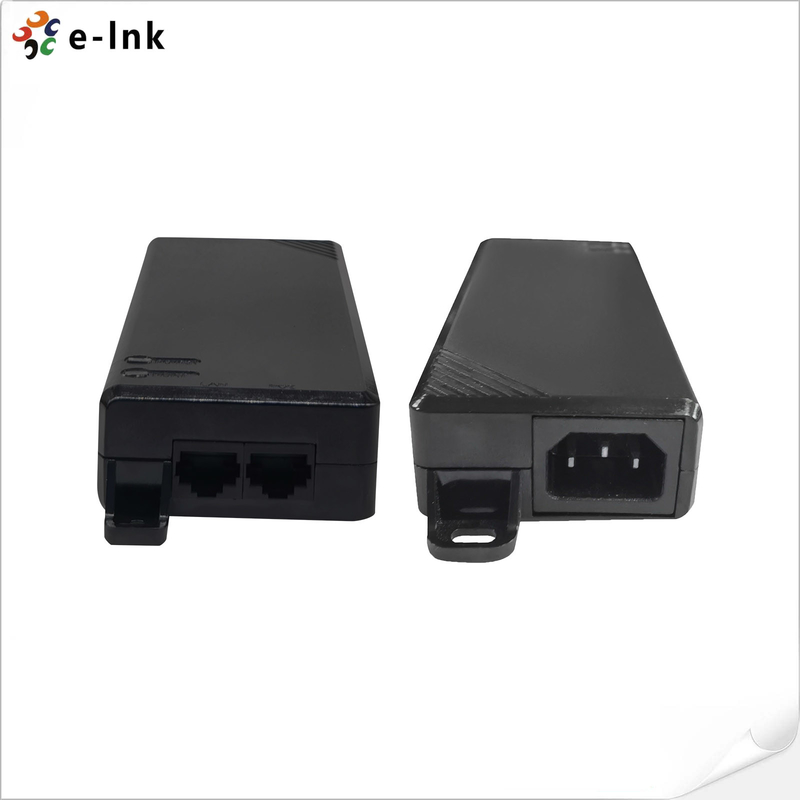

LNK-PSE9501G 95W – 56V Gigabit PoE Injector is a long-distance driving, fast network performing, strong PoE Output IE-
EE 802.3bt, 802.3at and 802.3af certified midspan. It is a single port indoor PoE injector that can provide up to 95W based
on the IEEE 802.3bt standard.
Ordering Information
| Model | Description |
| LNK-PSE9501G | 95-watt High Power over Ethernet Injector (10/100/1000Mbps, 4-Pair) |
