Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: LNK-FTB Series
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: Fiber Optic Accessories Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Materials: |
Cold-rolled Iron |
Color: |
Beige Or Black |
Working Temperature: |
-25 ~ +40°C |
Durability: |
>1000 Times |
Max Capacity Of Splice: |
24 |
IP Rating: |
IP65 |
Materials: |
Cold-rolled Iron |
Color: |
Beige Or Black |
Working Temperature: |
-25 ~ +40°C |
Durability: |
>1000 Times |
Max Capacity Of Splice: |
24 |
IP Rating: |
IP65 |

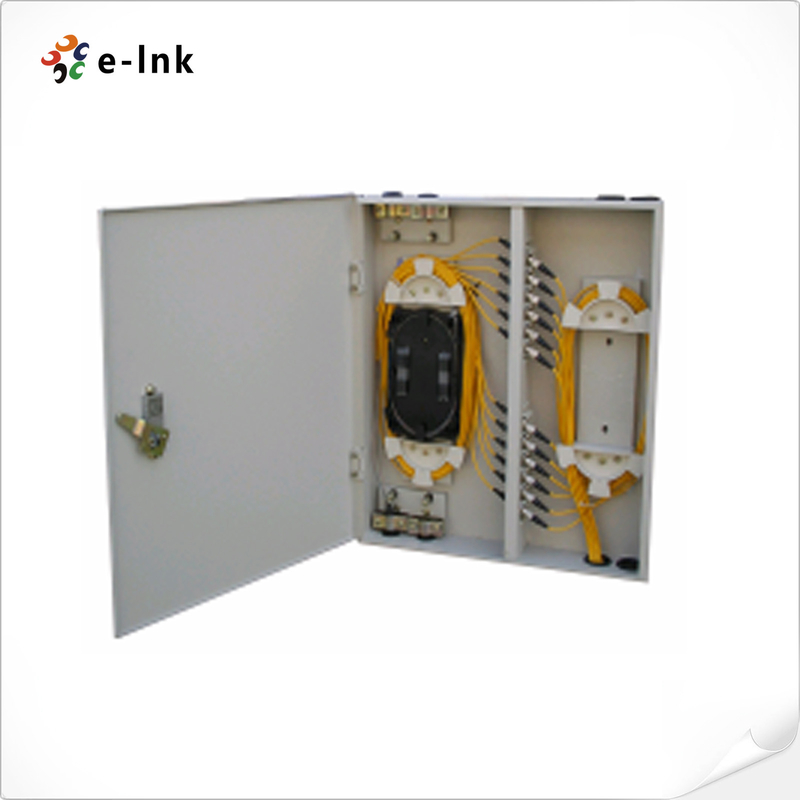

FTB Series Fiber Termination Box (wall mount with lock)
Fiber Optic Accessories Advantages:
Provide various accessories to avoid any unexpected damage to the fiber
The body of FTB Series Wall Mount Fiber Terminal Box is made of quality cold-rolled iron sheet
and undergoes static plastic spraying treatment, which can be used to mount (FC, SC, ST) and
other kinds of adapters; the box can be installed on the indoor wall and terrace; it is of strong
mechanical strength, beautiful and elegant exterior; it is capable of providing reliable protection
for the direct, terminal or branching connection of the fiber.
Application
Technical Indexes
| Materials | Cold-rolled iron |
| Color | Beige or black |
| Adapter | Available for SC,FC,LC,ST |
| Max adapter ports | 24 |
| Working temperature | -25 ~ +40°C |
| Relative humidity | ≤85%(+30°C) |
| Atmospheric pressure | 70~-106Kpa |
| Durability | >1000 times |
| Insulation resistance | 2x104M/500V (DC) |
| Insertion loss | 0.2 dB |
| Return loss | 50 dB/UPC |
| Cable Diameter (mm) | Ф5～Ф10 |
| IP rating | IP65 |
| Max capacity of splice | 24 |
