Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-106M
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Mini 4K HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini 4K HDMI Fiber Extender |
Transmission Distance: |
Multi Mode, Up To 984ft (300M) |
Temperature: |
0°C To + 50°C |
Weight: |
0.1 Kg / 0.22 Lb |
Operation Voltage: |
5VDC |
Dimension (LxWxH): |
3.15 X 0.79 X 0.35 In (80x20x9mm) |
Key Word: |
Mini 4K HDMI Fiber Extender |
Transmission Distance: |
Multi Mode, Up To 984ft (300M) |
Temperature: |
0°C To + 50°C |
Weight: |
0.1 Kg / 0.22 Lb |
Operation Voltage: |
5VDC |
Dimension (LxWxH): |
3.15 X 0.79 X 0.35 In (80x20x9mm) |
Mini 4K HDMI Fiber Extender Abvantages
► HDMI 1.4a and HCCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC CEC HPD Signal Support
► Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)
► Supports All Modes up to 4K*2K@30Hz Resolution
Technical Indexes
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Dynamic EDID | Plug & Play, no need to learn |
| Fiber Connector | Double LC Receptacle |
| Transmission Distance | Multi Mode, up to 984ft (300M) |
Overview

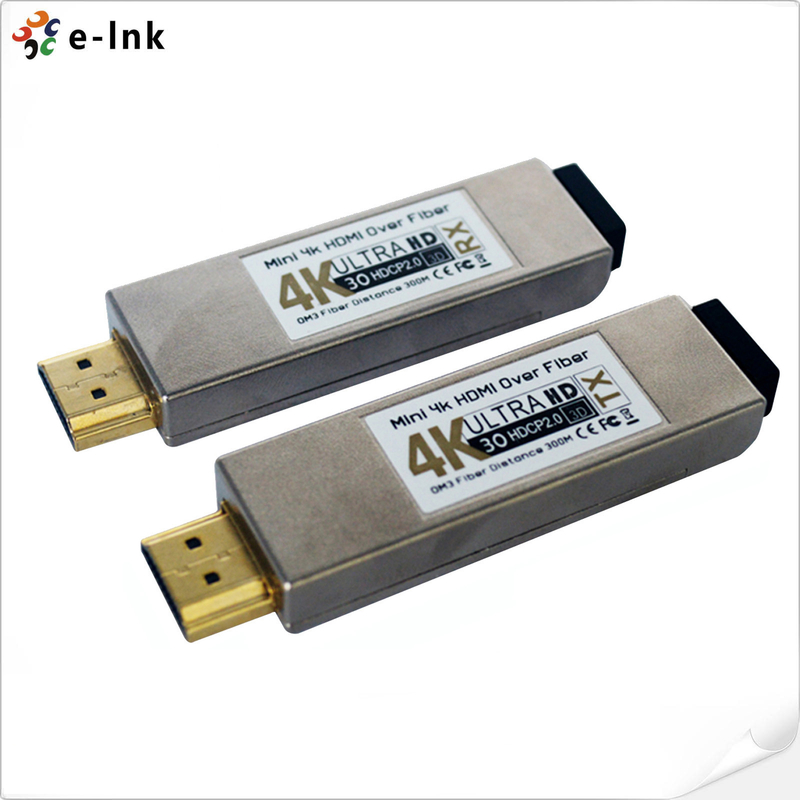

The 4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission of an uncompressed
lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K. 4 K HDMI
OPTICAL TRANSCEIVER -T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers.
Ordering Information
| Item | Description |
| LNK-106M | Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
