Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-107M
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Mini 4K HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini 4K HDMI Fiber Extender |
Transmission Distance: |
OM3 Multi Mode, Up To 984ft (300M) |
Temperature: |
-20°C To + 70°C |
Weight: |
0.1 Kg / 0.22 Lb |
Operation Voltage: |
5VDC |
Dimension (LxWxH): |
2.24 X 0.6 X 0.55 In (57x16x14mm) |
Key Word: |
Mini 4K HDMI Fiber Extender |
Transmission Distance: |
OM3 Multi Mode, Up To 984ft (300M) |
Temperature: |
-20°C To + 70°C |
Weight: |
0.1 Kg / 0.22 Lb |
Operation Voltage: |
5VDC |
Dimension (LxWxH): |
2.24 X 0.6 X 0.55 In (57x16x14mm) |
Mini 4K HDMI Fiber Extender Abvantages
► Supports HDMI Video up to 4K/30Hz
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM3 multi-mode optical fiber
► Supports up to 300m Transmission Distance with OM3 multimode fiber
► Standard HDMI1.4 Connector
Technical Indexes
| Type of Extender | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4 HDMI format standard |
| Video Support | 4K@30Hz/1080p/1080i/720p |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 10.2Gbps(3.4Gbps/CH) |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
| Note | The module does not support HDCP and EDID transparent transmission |
Overview

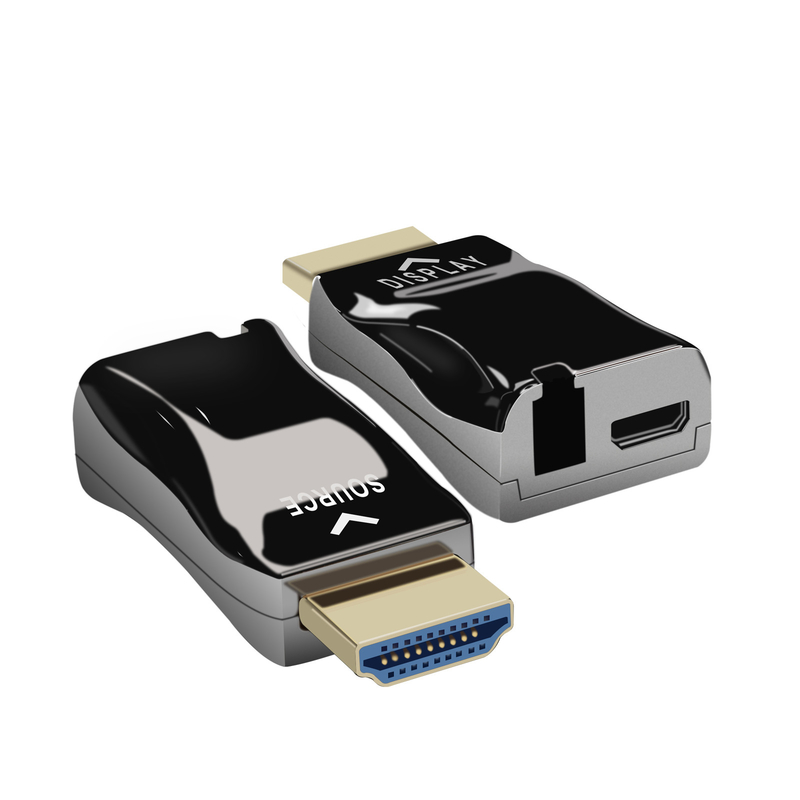

The LNK-107M is a mini 4K/30Hz HDMI over Single-Core MM compact fiber extender that is pluggable directly into your de-
vice. Extend your 4K video source over fiber up to 984ft/300m to your desired display with this incredibly compact set. The set
also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
Ordering Information
| Model | Description |
| LNK-107M | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
