Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: LNK-FVGA
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiate
Packaging Details: Fiber Media Convertor Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Power Supply: |
The Power Adapter: DC 5V/2A |
Power Dissipation: |
MAX 6W |
Working Temperature: |
-5℃ ~ +70℃ |
Humidity: |
Operating: 5% ~ 90% |
Dimension: |
165*120*27mm 19inch 4U Rack |
The Warranty: |
1 Year Free Warranty, Life-long Maintenance |
Power Supply: |
The Power Adapter: DC 5V/2A |
Power Dissipation: |
MAX 6W |
Working Temperature: |
-5℃ ~ +70℃ |
Humidity: |
Operating: 5% ~ 90% |
Dimension: |
165*120*27mm 19inch 4U Rack |
The Warranty: |
1 Year Free Warranty, Life-long Maintenance |
VGA Fiber Optic Extender Support transmitter one channel signal output
Fiber Optic Accessories Advantages:
► Transmits VGA video signals up to 10km over one fiber optic cable;
► Support video resolution up to 1920*1080P@60Hz;
► Support keyboard and mouse signal transmission;
► Support external stereo audio unidirectional transmission;
► Support transmitter one channel signal output;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
The LNK-FVGA Fiber optic extender provides extension of VGA signals long distances over
one fiber optic cable, it supports high resolution up to 1080P, transmitter local output, 1 Ch RS232
signal and external 1 duplex audio transmission function. The extender can use for a wide range
of applications requiring long distance transmission of high resolution with high quality by its good
stability and powerful security.
Application
Technical Parameters
| Parameter | Description | |
| Video | Standards | VGA |
| Maximum pixel clock | 380MHz | |
| Resolution |
1920x1200@60Hz / 1920x1080@60Hz 1600x1200@60Hz / 1680x1050@60Hz 1280x1024@60Hz / 1280x1024@75Hz 1280x800@60Hz / 1280x768@60Hz 1280x720@60Hz / 1024x768@60Hz 1024x768@75Hz / 800x600@60Hz/75Hz |
|
| Impedance | 75Ω | |
| Audio | Interface | 3.5mm earphone seat |
| Format | 44.1K,48K,96K,176K,192K | |
| Signal type | Stereo | |
| RS232 | Interface | Industrial terminal |
| Signal direction | Bidirectional | |
| Baud rate | Self-adaptive, Max:115200bps | |
| Data bits | 8 | |
| KVM | K/M TO PC | USB connect to PC |
| KEYBOARD/MOUSE | USB connect to keyboard and mouse | |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber | |
| Wavelength | Single-mode 1310nm | |
| Interface bandwidth | 2.97Gbps | |
| Transmission distance | standard 10km | |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 6W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension |
165*120*27mm 19inch 4U rack |
|
| The warranty | 1 year free warranty, life-long maintenance | |
Panel
Transmitter
Receiver
| Port name | Description |
| VGA IN/OUT | VGA signal input/output |
| AUDIO IN/OUT | Stereo audio signal input/output |
| RS232 | Serial port(GND: Ground, TX: transmit, RX: receive) |
| DC/5V | Power adapter socket |
| FIBER | SFP module---LC connector |
| K/M TO PC | Mini-USB connect to PC |
| KEYBOARD/MOUSE | USB connect to keyboard and mouse |
| LED indicator | Description |
| P | Video signal connection indicator |
| F | Video signal lock indicator |
| V | System status indicator |
| D | System power indicator |
Odering Information
| Model | Details |
| LNK-FVGA-T | 1080P VGA Fiber Optic Extender Transmitter |
| LNK-FVGA-R | 1080P VGA Fiber Optic Extender Receiver |

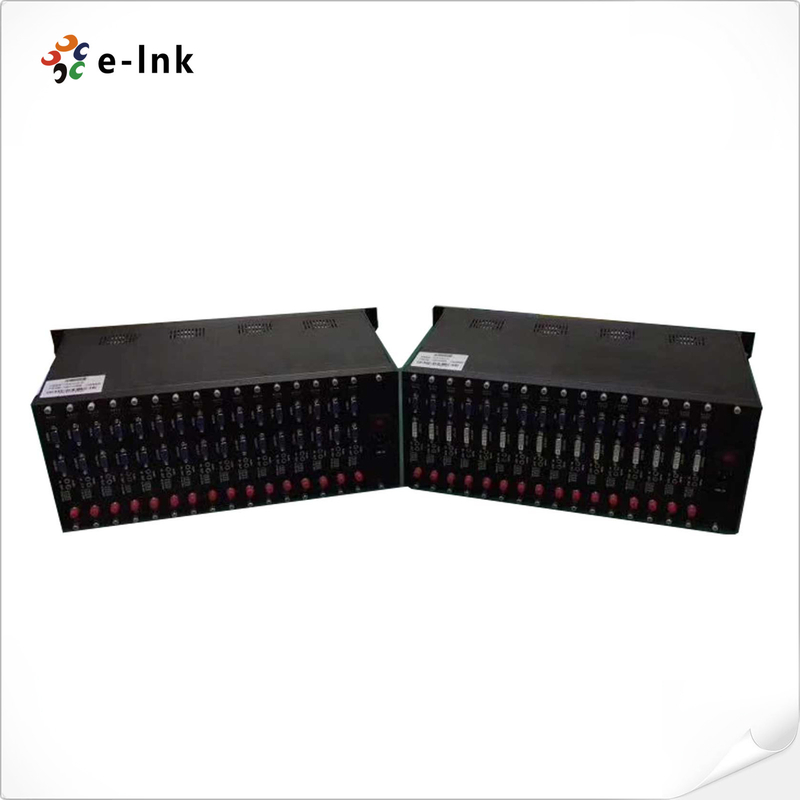

| LNK-R16-4-D |
16-slot, dual power supply-AC110-220V-19''4U- blackfor card-type media converter |
