Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-108M
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Mini 4K HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini 4K HDMI Fiber Extender |
Transmission Distance: |
300m With OM3 Fiber, 400m With OM4 Fiber, 500m With OM5 Fiber |
Temperature: |
-20°C To + 70°C |
Weight: |
0.1 Kg / 0.22 Lb |
Operation Voltage: |
5VDC |
Dimension (LxWxH): |
2.24 X 0.6 X 0.55 In (57x16x14mm) |
Key Word: |
Mini 4K HDMI Fiber Extender |
Transmission Distance: |
300m With OM3 Fiber, 400m With OM4 Fiber, 500m With OM5 Fiber |
Temperature: |
-20°C To + 70°C |
Weight: |
0.1 Kg / 0.22 Lb |
Operation Voltage: |
5VDC |
Dimension (LxWxH): |
2.24 X 0.6 X 0.55 In (57x16x14mm) |
Mini 4K HDMI Fiber Extender Abvantages
► Supports HDMI Video up to 4K/30Hz
► No Settings or Adjustments Necessary
► Adopt WDM technology to realize high-definition audio and video transmission through a single OM3 multi-mode optical fiber
► Supports up to 300m distance with OM3, 400m with OM4, 500m with OM5 fiber
► Standard HDMI1.4 Connector
Technical Indexes
| Type of Extender | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4 HDMI format standard |
| Video Support | 4K@30Hz/1080p/1080i/720p |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Fiber Connector | 1 x LC Connector |
| Transmission Rate | 10.2Gbps(3.4Gbps/CH) |
| Transmission Distance | 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
| Humidity | to 90% RH (non-condensing) |
| Note | The module does not support HDCP and EDID transparent transmission |
Overview

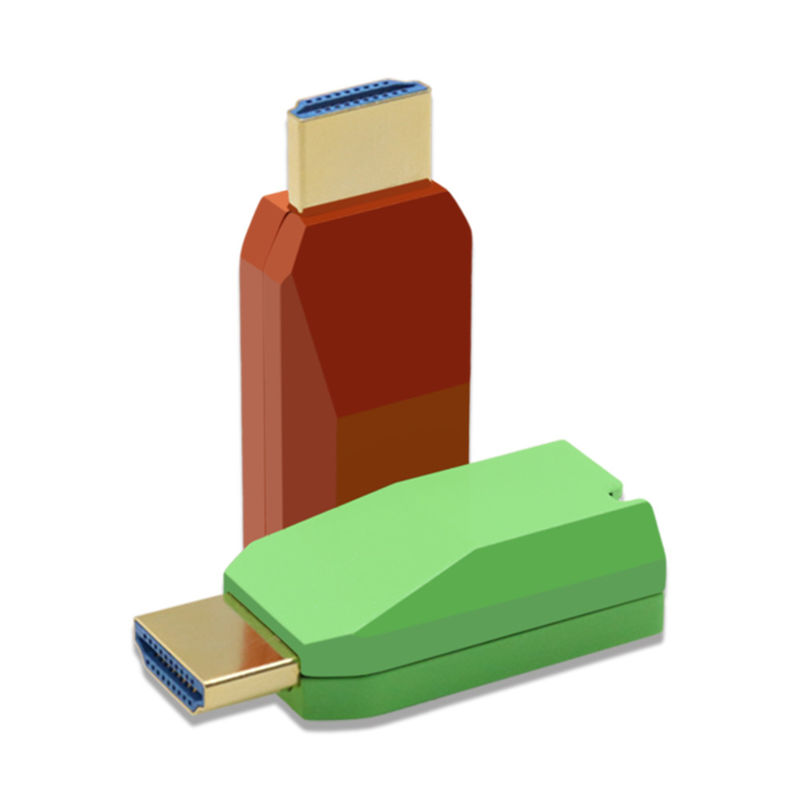

The LNK-108M is a mini 4K/30Hz HDMI over Single-Core MM fiber extender that is pluggable directly into your device. Ex-
tend your 4K video source over fiber up to 500m (with OM5 fiber) to your desired display with this incredibly compact set. The
set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
Ordering Information
| Model | Description |
| LNK-108M |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input Distance: 300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber |
