Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: E-link SFP-BIDI
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: Negotiate
Packaging Details: Fiber Optic Accessories Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Data Rate: |
Gigabit Ethernet1.25G |
Bias Current: |
0 To 100mA |
Working Temperature: |
0 To +70 |
Curvature Radius: |
≥40mm |
TX Power: |
-5 To 0dBm |
RX Power: |
-23 To -3dBm |
Data Rate: |
Gigabit Ethernet1.25G |
Bias Current: |
0 To 100mA |
Working Temperature: |
0 To +70 |
Curvature Radius: |
≥40mm |
TX Power: |
-5 To 0dBm |
RX Power: |
-23 To -3dBm |

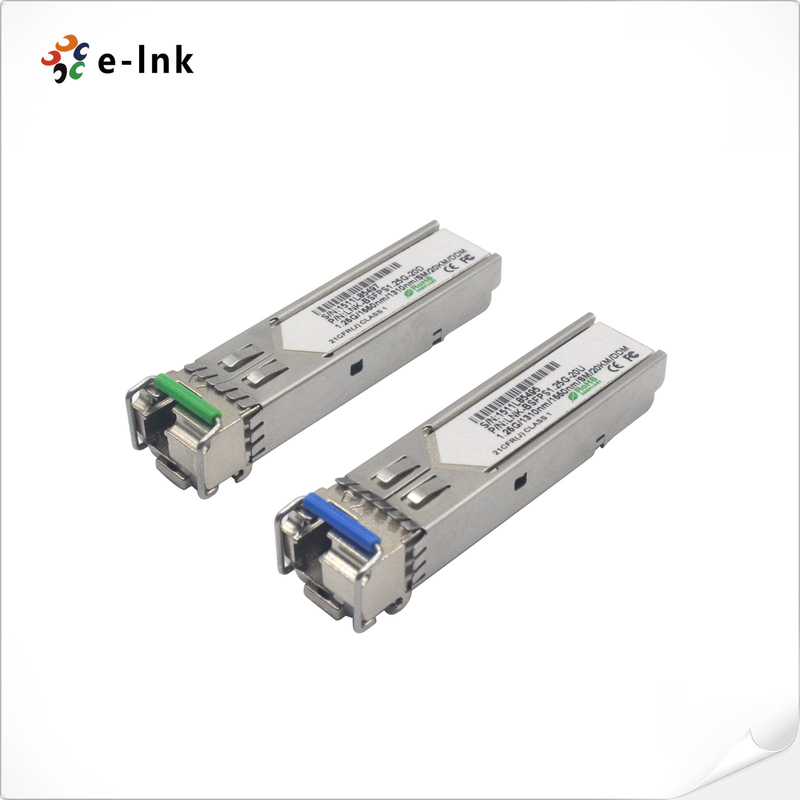

1.25Gbps SFP Bi-Directional Transceiver, 20km Reach 1310nm TX / 1490nm RX
Fiber Optic Accessories Advantages:
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate
of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated
with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser
safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA
Module Block Diagram
Application
Technical Parameters
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1290 | 1310 | 1330 | nm | |||
| Spectral Width (-20dB) | ∆λ | 1 | nm | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Average Output Power | Pout | -5 | 0 | dBm | 1 | |||
| Extinction Ratio | ER | 9 | dB | |||||
| Optical Rise/Fall Time (20%~80%) | tr/tf | 0.26 | ns | |||||
| Data Input Swing Differential | VIN | 400 | 1800 | mV | 2 | |||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |||
| TX Disable | Disable | 2.0 | Vcc | V | ||||
| Enable | 0 | 0.8 | V | |||||
| TX Fault | Fault | 2.0 | Vcc | V | ||||
| Normal | 0 | 0.8 | V | |||||
| Receiver | ||||||||
| Centre Wavelength | λc | 1470 | 1490 | 1510 | nm | |||
| Receiver Sensitivity | -23 | dBm | 3 | |||||
| Receiver Overload | -3 | dBm | 3 | |||||
| LOS De-Assert | LOSD | -24 | dBm | |||||
| LOS Assert | LOSA | -35 | dBm | |||||
| LOS Hysteresis | 1 | 4 | dB | |||||
| Data Output Swing Differential | Vout | 400 | 1800 | mV | 4 | |||
| LOS | High | 2.0 | Vcc | V | ||||
| Low | 0.8 | V | ||||||
Timing and Electrical
| Parameter | Symbol | Min | Typical | Max | Unit |
| Tx Disable Negate Time | t_on | 1 | ms | ||
| Tx Disable Assert Time | t_off | 10 | µs | ||
| Time To Initialize, including Reset of Tx Fault | t_init | 300 | ms | ||
| Tx Fault Assert Time | t_fault | 100 | µs | ||
| Tx Disable To Reset | t_reset | 10 | µs | ||
| LOS Assert Time | t_loss_on | 100 | µs | ||
| LOS De-assert Time | t_loss_off | 100 | µs | ||
| Serial ID Clock Rate | f_serial_clock | 400 | KHz | ||
| MOD_DEF (0:2)-High | VH | 2 | Vcc | V | |
| MOD_DEF (0:2)-Low | VL | 0.8 | V |
Diagnostics Specification
| Parameter | Range | Unit | Accuracy | Calibration |
| Temperature | 0 to +70 | °C | ±3°C | Internal / External |
| -40 to +85 | ||||
| Voltage | 3.0 to 3.6 | V | ±3% | Internal / External |
| Bias Current | 0 to 100 | mA | ±10% | Internal / External |
| TX Power | -5 to 0 | dBm | ±3dB | Internal / External |
| RX Power | -23 to -3 | dBm | ±3dB | Internal / External |
