Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: The LNK-MH4K Series
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Mini 4K HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini 4K HDMI Fiber Extender |
Temperature: |
-10 To + 60°C |
Weight: |
50g / 0.11 Lb |
Fiber Connector: |
SFP/LC |
Operation Voltage: |
5VDC |
Dimension (LxWxH): |
3.07 X 1.06 X 0.69in (78x27x17mm) |
Key Word: |
Mini 4K HDMI Fiber Extender |
Temperature: |
-10 To + 60°C |
Weight: |
50g / 0.11 Lb |
Fiber Connector: |
SFP/LC |
Operation Voltage: |
5VDC |
Dimension (LxWxH): |
3.07 X 1.06 X 0.69in (78x27x17mm) |
Mini 4K HDMI Fiber Extender Abvantages
► HDMI 1.4a and HCCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC CEC HPD Signal Support
► Data rate up to 10.3Gbps
► Transmit up to 80km over fiber cable
Technical Indexes
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Connector | Female HDMI type A |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling | Color space 420, 400 |
| Dynamic EDID | Plug & Play, no need to learn |
| Fiber Connector | SFP/LC |
| Bandwidth | 10.3Gbps |
| Transmission Distance | 300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) |
Overview

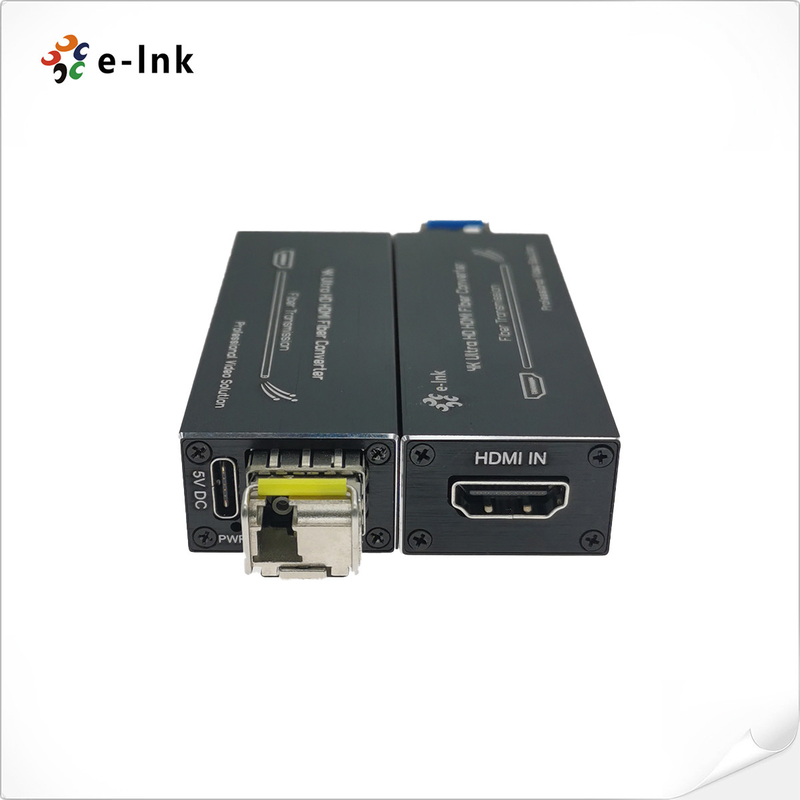

The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI
1.4a signal over optical fiber up to distances of 80km, at a resolution of 4Kx2K.
Ordering Information
| Model | Description |
| LNK-MH4K-MM | Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input |
| LNK-MH4K-S20 | Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input |
| LNK-MH4K-S40 | Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input |
| LNK-MH4K-80 | Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input |
| LNK-MH4K-S80 | Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input |
