Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC
Model Number: LNK-109KVM
Payment & Shipping Terms
Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: Mini 4K HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Mini 4K HDMI Fiber Optic Extender |
Gross Weigh: |
0.25KG |
Power Supply: |
DC 5V |
Temperature: |
0℃ ~ +55℃ |
Dimension (LxWxH): |
93 X 70 X 28(mm) |
The Warranty: |
1-year Free Warranty |
Key Word: |
Mini 4K HDMI Fiber Optic Extender |
Gross Weigh: |
0.25KG |
Power Supply: |
DC 5V |
Temperature: |
0℃ ~ +55℃ |
Dimension (LxWxH): |
93 X 70 X 28(mm) |
The Warranty: |
1-year Free Warranty |
Mini 4K HDMI Fiber Extender Abvantages
► Transmits 4K HDMI2.0 video signals up to 300 meters over OM4 MMF
► Support keyboard and mouse signal transmission
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4
► Transmitter support local loop output
► Simple to install, plug and play
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 2.0 and HDCP 2.2 |
| Maximum pixel clock | 600MHz | |
| Data speed | 18Gbps(6 Gbps/CH) | |
| Resolution range | 4K@60Hz/4K@30Hz/1080p/720p | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| K/M | Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
| Optical fiber | Interface | LC connector |
| Fiber type | OM4 Multimode | |
| Wavelength | 850nm | |
| Interface bandwidth | 18Gbps | |
| Transmission distance | OM4 Multimode fiber: 300M | |
Overview

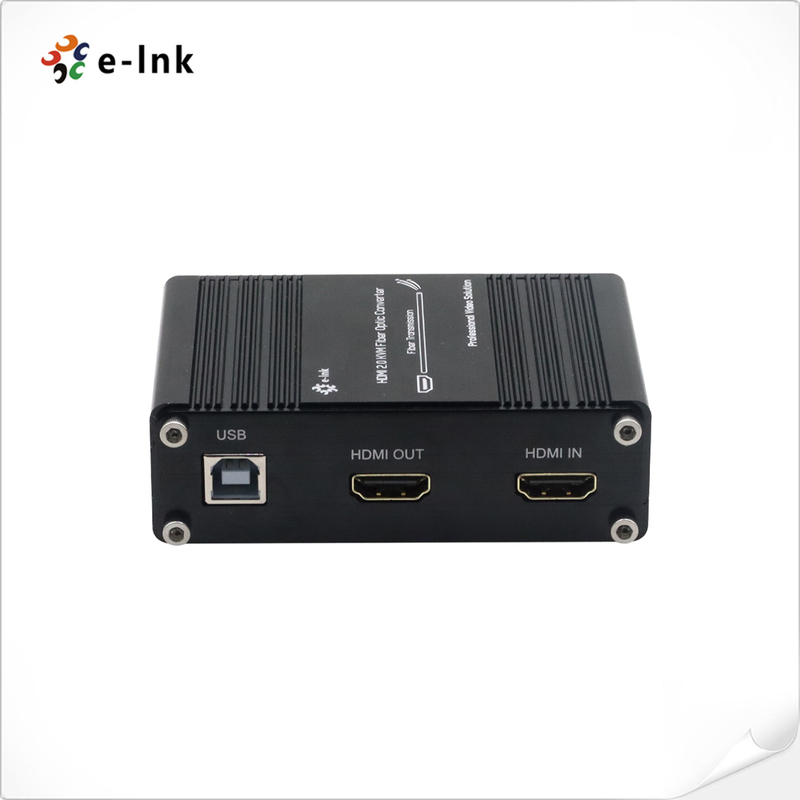

LNK-109KVM Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender, consists of a Transmitter and a Receiver unit that
allows you to extend HDMI 2.0 and USB HID signals up to 300 meters (984 feet) over LC OM4 MM Fiber Optic Cabling. The
HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.
Ordering Information
| Model | Description |
| LNK-109KVM | Uncompressed Mini 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3/4 Multimode Fiber, LC, 300 meters |
