Product Details
Place of Origin: China
Brand Name: E-link
Certification: Iso9001, CE, ROHS, FCC
Model Number: LNK-POE-2P
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiate
Packaging Details: Fiber Optic Accessories Standard Package
Delivery Time: 1-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000/month
Power Pin: |
4, 5, 7, 8 (12~57V) |
Case Of Material: |
PVC |
Ethernet Cable Connector: |
RJ-45 |
Storage Temperature: |
-40°C - 70°C (-40°F - 158°F) |
Storage Humidity: |
5% ~ 90% (non-condensing) |
Dimensions: |
210 X 19 X 19 Mm ( L X W X H (mm) ) |
Power Pin: |
4, 5, 7, 8 (12~57V) |
Case Of Material: |
PVC |
Ethernet Cable Connector: |
RJ-45 |
Storage Temperature: |
-40°C - 70°C (-40°F - 158°F) |
Storage Humidity: |
5% ~ 90% (non-condensing) |
Dimensions: |
210 X 19 X 19 Mm ( L X W X H (mm) ) |
Model:LNK-POE-2P
Overview

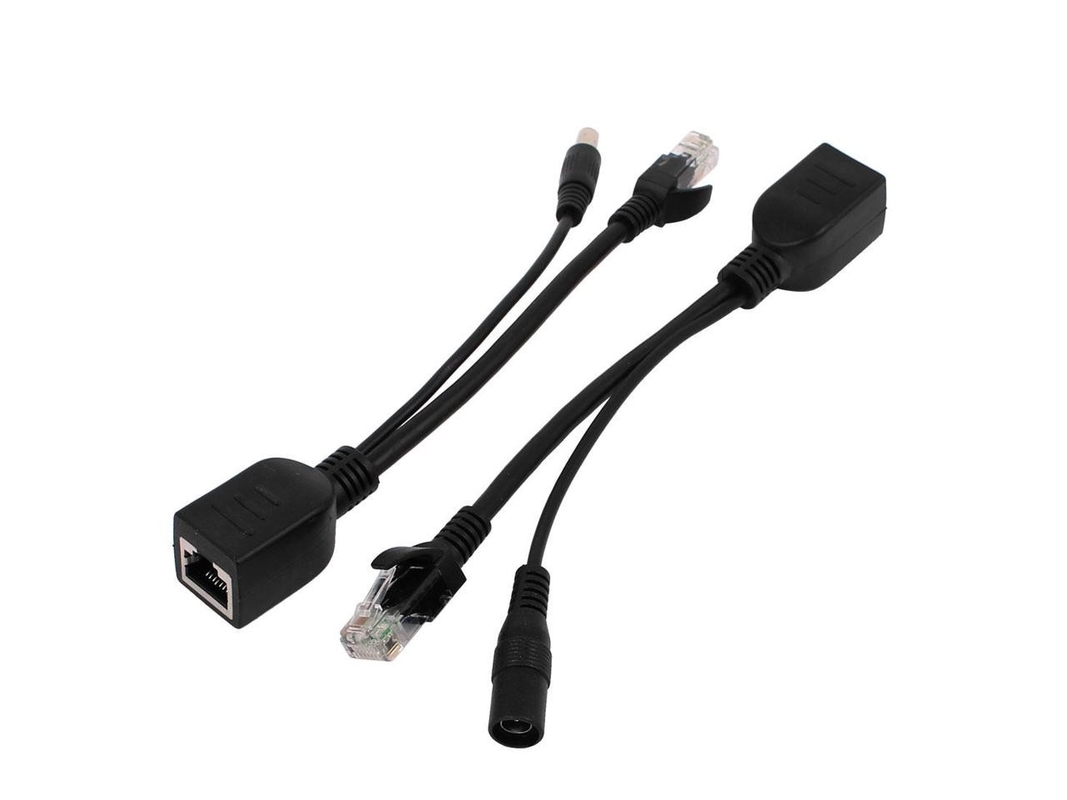

LNK-POE-2P is a passive Power over Ethernet kit, including one passive splitter and one passive injector.
It provides the most convenient and cost effective way for you to make PoE application, you do not worry
about how to find power outlet when using AP or IPCam. It uses the power adapter that comes with your
network device. There is no need for special PoE power adapter.
Features
► Passive PoE Splitter + Passive PoE Injector
► Easy to install PoE Application for AP, CPE, IPCam, IP Phone
► Use the Power Supply from Powered Device
► Accept up to 57V Voltage Input
Technical Indexes
| Interface | Data pin: 1,2,3,6 |
| Power pin: 4, 5, 7, 8 (12~57V) | |
| Case of material | PVC |
| Network cable | T IA/EIA 568 Cat. 5 |
| Ethernet data rate | 10/100 Mbps |
| Ethernet cable connector | RJ-45 |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -40°C - 70°C (-40°F - 158°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
| Product Weight (g) | 55g |
| Dimensions | 210 x 19 x 19 mm |
| ( L x W x H (mm) ) |
Application
Ordering Information
| Item | Description |
| LNK-POE-2P | Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector |
