Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001 / CE / RoHS / FCC
Model Number: LNK-PC-FC-LC-SM-D-15 Series
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: Negotiate
Packaging Details: Fiber Optic Accessories Standard Carton Packaging
Delivery Time: 1-3working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Connector: |
LC-FC |
Length: |
15 Meter (50ft) |
Type: |
Duplex |
Endurance: |
△IL≤0.2dB |
Operating Temperature: |
-20~+70℃ |
Storage Temperature: |
-40~+80℃ |
Connector: |
LC-FC |
Length: |
15 Meter (50ft) |
Type: |
Duplex |
Endurance: |
△IL≤0.2dB |
Operating Temperature: |
-20~+70℃ |
Storage Temperature: |
-40~+80℃ |

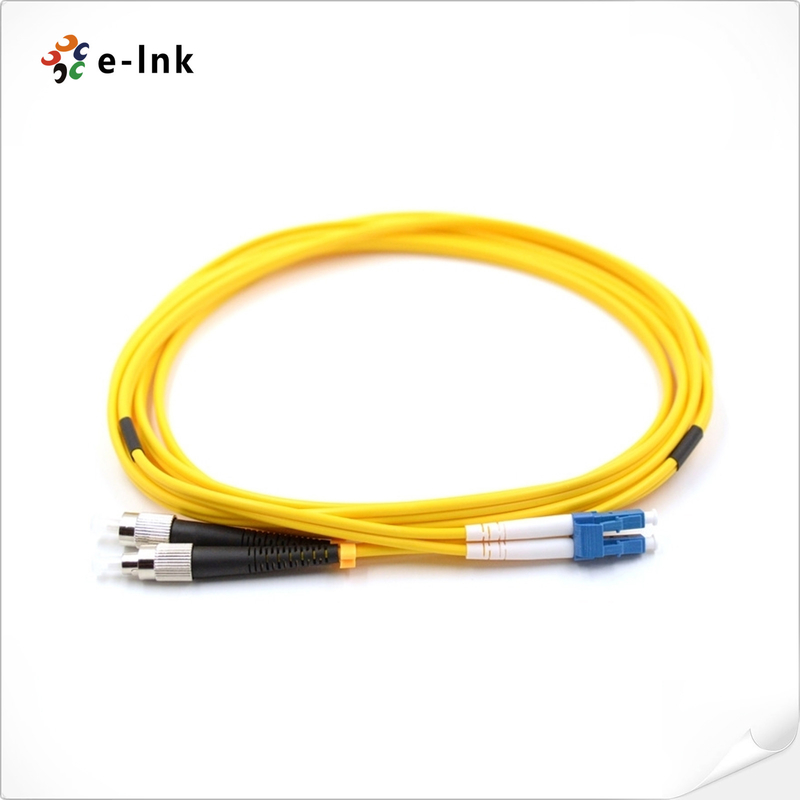

15m, LC to FC, Duplex, Singlemode Patch Cable Immune to electrical interference
Fiber Optic Accessories Advantages:
· Plug-in fasten structure and stable connection
· 100% Optically inspected and tested for insertion loss
· High quality ferrule
· Pull-Proof Jacket
· Immune to electrical interference
· Various cable diameters available: Φ0.9, Φ2.0, Φ3.0mm
· PC(SPC/UPC), APC polishing available
· Comply with ICE standards
· RoHS Compliant
A cost-effective solution that provides high bandwidth and transmission rates over long distances.
This high-quality single-mode fiber optic patch cable is specifically designed using SMF-28e fiber
for ethernet applications. Each connection has great durability and is resistant to pulls, strains and
impacts during installation.
Our cables are 100% optically inspected and tested for insertion loss before you receive them. A
pull-proof jacket design surrounds the Single-mode, OS2, 9 / 125 fiber which is immune to electrical
interference.
Application
· Telecommunication
· Computer networks
· CATV networks
· Active device termination
· Instrumentation
Technical Indexes
| Connector: LC-FC | Single-mode, OS2, 9/125 | Type | |||||
| Length | 15 Meter (50ft) | Duplex | |||||
| Insertion Loss(IL) | dB | ≤0.3dB | IEC 61300-3-4 | ||||
| Return Loss(RL) | dB | ≥40 | ≥45 | ≥50 | ≥60 | ≥30 | IEC 61300-3-6 |
| Endurance | dB | △IL≤0.2 | IEC 61300-2-2, coupling and uncoupling 500cycles, clean every 25 cycles | ||||
| Operating Temperature | ℃ | -20~+70 | |||||
| Storage Temperature | ℃ | -40~+80 | |||||
| Drop | dB | △IL≤0.2 | IEC 61300-2-12, 1.5m, 5drops, no damage | ||||
| Vibration | dB | △IL≤0.2 | IEC 61300-2-1, 10-55Hz, 0.75mm amplitude, 0.5hrs/axis | ||||
| Flex | dB | △IL≤0.2 | Telcordia GR326(4.4.3.2), 0.9kg, ±90°, 100cycles, for Φ2.0 or larger cable | ||||
| Twist | dB | △IL≤0.2 | Telcordia GR326(4.4.3.3), 1.35kg load, ±2.5 turns, 10cycles, for Φ2.0 or larger cable | ||||
| Pull Proof | dB | △IL≤0.2 | Telcordia GR326(4.4.3.4), 3.4kg at 90°, 6.8kg at 0°, for Φ2.0 or lager cable | ||||
| Coupling Strength | dB | △IL≤0.2 | IEC 61300-2-6, 4.2kg, 2minutes | ||||
| Low Temperature | dB | △IL≤0.2 | IEC 61300-2-17, -20℃, 96hrs | ||||
| High Temperature | dB | △IL≤0.2 | IEC 61300-2-18, 70℃, 96hrs | ||||
| Humidity | dB | △IL≤0.2 | IEC 61300-2-19, 40℃, 95%RH, 96hrs | ||||
| Salt mist | No corrosion | IEC 61300-2-26, 5% NaCl, 30℃, 7 days | |||||
Ordering Information
| Model | Description |
| LNK-PC-FC-LC-SM-D-15 | Patch cord FC/UPC-LC/UPC Single Mode, Duplex, 3.0mm, Length = 15M |
